Weidmuller 2534390000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

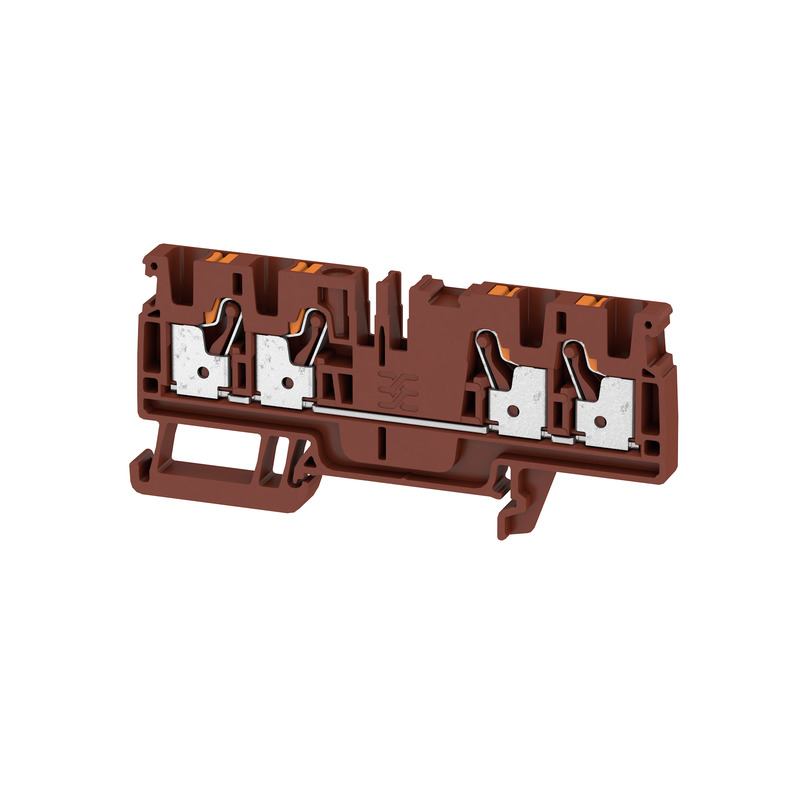

Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, brownA4C 4 BR
Weidmuller 2534390000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Rail
- Open sides
- right
- Snap-on
- No
- Type of fixing
- Snap-on
- Type of mounting
- TS 35
- With snap-in pegs
- No
Approvals
- Approvals
- CE, CSA, cURus, DNV GL, IECEXTUR, TUEVNATEX
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.0 mm
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A1
- Number of connections
- 4
- Stripping length
- 12 mm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Current size B (CSA)
- 30 A
- Current size C (CSA)
- 30 A
- Current size D (CSA)
- 5 A
- Voltage size B (CSA)
- 600 V
- Voltage size C (CSA)
- 600 V
- Voltage size D (CSA)
- 600 V
- Wire cross section max. (CSA)
- 10 AWG
- Wire cross section min. (CSA)
- 26 AWG
Dimensions And Weights
- Depth
- 39.5 mm
- Depth (inches)
- 1.555 inch
- Depth including DIN rail
- 40.5 mm
- Height
- 87.5 mm
- Height (inches)
- 3.445 inch
- Net weight
- 15.06 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Material Data
- Colour
- brown
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 32 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 800 V
- Standards
- IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV16ATEX7909U
- Certificate No. (IECEX)
- IECEXTUR16.0036U
- Current (ATEX)
- 30 A
- Current (IECEX)
- 30 A
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Max. voltage (ATEX)
- 550 V
- Max. voltage (IECEX)
- 550 V
- Wire cross section max. (ATEX)
- 4 mm²
- Wire cross section max. (IECEX)
- 4 mm²
System Specifications
- End cover plate required
- Yes
- Number of potentials
- 1
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring max. (cURus)
- 10 AWG
- Conductor size Factory wiring min. (cURus)
- 28 AWG
- Conductor size Field wiring max. (cURus)
- 10 AWG
- Conductor size Field wiring min. (cURus)
- 28 AWG
- Current size B (cURus)
- 30 A
- Current size C (cURus)
- 30 A
- Current size D (cURus)
- 5 A
- Voltage size B (cURus)
- 600 V
- Voltage size C (cURus)
- 600 V
- Voltage size D (cURus)
- 600 V
