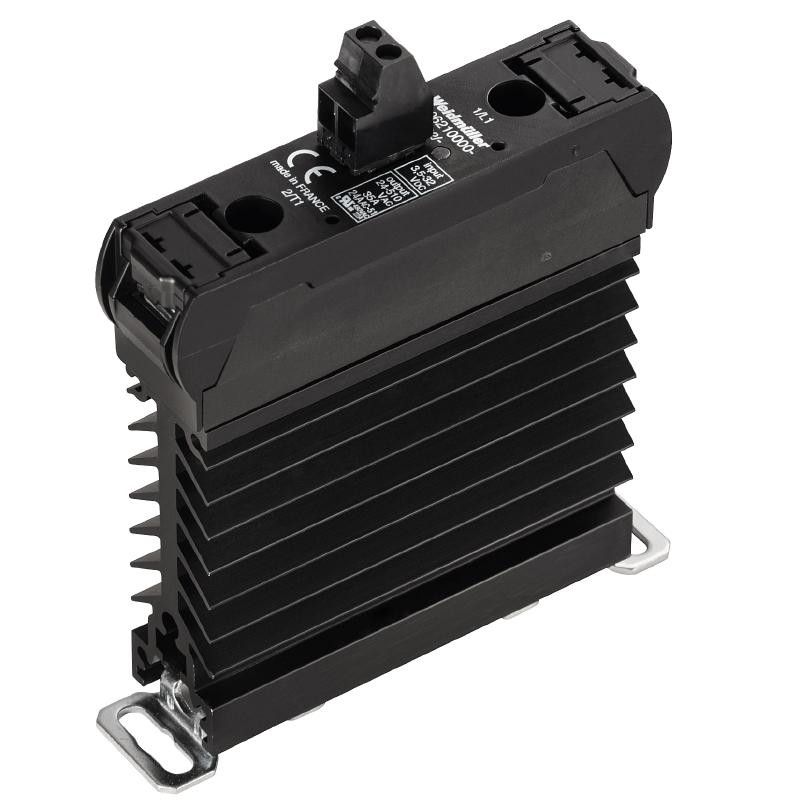

Weidmuller 2531050000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power Solid-State Relais, Solid state contactor, 1 NO contact (Thyristor (instantaneous-switching)), Rated control voltage: 3.5…32 V DC , Rated switching voltage: 24…510 V AC, Continuous current: 22 A (AC51) at 40 °C, 7 A (AC 53)PSSR 24VDC/1PH AC 22A I
Weidmuller 2531050000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-37-10-14
- eClass 9.0
- 27-37-10-14
- eClass 9.1
- 27-37-10-14
- ETIM 6.0
- EC002055
- ETIM 7.0
- EC002055
Connection Data (Control Side)
- Blade size (control side)
- 0.6 x 3.5 mm
- Max. rated connection clamping range (control side)
- 3.3 mm²
- Max. tightening torque (control side)
- 0.5 Nm
- Min. rated connection clamping range (control side)
- 0.13 mm²
- Min. tightening torque (control side)
- 0.4 Nm
- Nom. rated connection clamping range (control side)
- 1.5 mm²
- Wire connection method (control side)
- Screw connection
Connection Data (Load Side)
- Blade size (load side)
- Gr. PZ2
- Max. rated connection clamping range (load side)
- 6 mm²
- Max. tightening torque (load side)
- 3 Nm
- Min. rated connection clamping range (load side)
- 1.5 mm²
- Min. tightening torque (load side)
- 2 Nm
- Nom. rated connection clamping range (load side)
- 6 mm²
- Wire connection method (load side)
- M5 ring cable lug (insulated)
Contact Data
- Contact type
- 1 NO contact (Thyristor (instantaneous-switching))
Control Side
- Cut-in / dropout voltage
- 3 V / 2 V DC
- Nominal control current
- 13.4 mA DC ±20 %
- Power rating
- < 500 mW
- Protective circuit
- Suppressor diode
- Rated control voltage
- 3.5…32 V DC
- Status indicator
- LED yellow
Dimensions And Weights
- Depth
- 115.4 mm
- Depth (inches)
- 4.543 inch
- Height
- 98 mm
- Height (inches)
- 3.858 inch
- Net weight
- 252 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Rail
- TS 35
- Version
- Single-phase with mounted heat sink (instantaneous-switching output)
Insulation Coordination
- Clearance and creepage distances for control side - load side
- ≥ 3.2 mm
- Dialectric strength of load side - housing
- 4 kVeff
- Dielectric strength for control side - load side
- 3.3 kVeff /1 min.
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Insulation coordination according to
- EN 60947-4-3:2014
- Pollution severity
- 2
- Protection degree
- IP20
- Surge voltage category
- III
Load Side
- Continuous current
- 22 A (AC51) at 40 °C, 7 A (AC 53)
- Inrush current
- 290 A (10 ms)
- Leakage current
- ≤ 1 mA
- Load category
- AC 51, AC 53
- Load limit integral (I²t) <10 ms
- 1,400 A2s
- Max. switching current
- 50 A
- max. switching frequency (DC control voltage)
- 10 Hz
- Min. switching current
- 5 mA
- Output voltage frequency range
- 50...60 Hz
- Protective circuit, load side
- Varistor
- Pulse load, max. current
- 530 A (10 ms), non-recurrent
- Rated switching voltage
- 24…510 V AC
- Short-circuit-proof
- No
- Switch-off delay
- ≤ 10 ms
- Switch-on delay
- ≤0,1 ms
- Voltage drop at max. load
- ≤1.25 V
Temperatures
- Humidity
- 40...85 % (indoor) no condensation
- Operating temperature
- -55 °C...100 °C
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -55 °C
- Storage temperature
- -55 °C...125 °C
- Storage temperature, max.
- 125 °C
- Storage temperature, min.
- -55 °C
