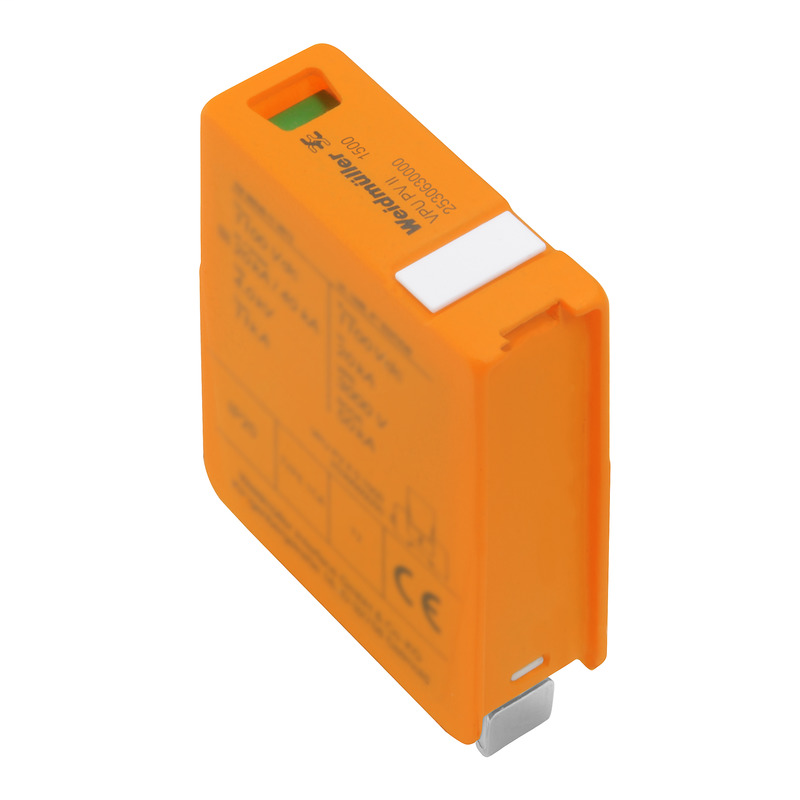

Weidmuller 2530630000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge voltage arrester, Low voltage, Accessories, 1500 V, Spare arrester, 30 kAVPU PV II 0 1500
Weidmuller 2530630000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Type of connection
- pluggable
Dimensions And Weights
- Depth
- 63 mm
- Depth (inches)
- 2.48 inch
- Height
- 45 mm
- Height (inches)
- 1.772 inch
- Net weight
- 72 g
- Width
- 18 mm
- Width (inches)
- 0.709 inch
General Data
- Altitude
- < 4,000 m, see operating instructions
- Colour
- orange
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20
- UL 94 flammability rating
- V-0
- Version
- Spare arrester
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Photovoltaic Technical Data
- Discharge current I
- 20 kA
- Discharge current, max. (8/20 µs)
- 30 kA
- Protection level U
- ≤ 2.5 kV
- PV system voltage, max. U
- 1,500 V
- Requirements class
- Type II
- Short-circuit curent I
- 11,000 A
- Standards
- EN 50539-11:2013+A1:2014, UL 1449 Ed.4
- Total discharge current I
- 40 kA
Rated Data Ul
- Ambient temperature (operational), max.
- 85 ° C
- Category
- SPD TYPE 1CA
- Certificate No. (cURus)
- E354261
- Certificate No. (UR)
- E354261
- I
- 20 kA
- Rated Voltage U
- 1,500 V
- SCCR
- 65 kA
- Voltage type
- DC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
