Weidmuller 2524850000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

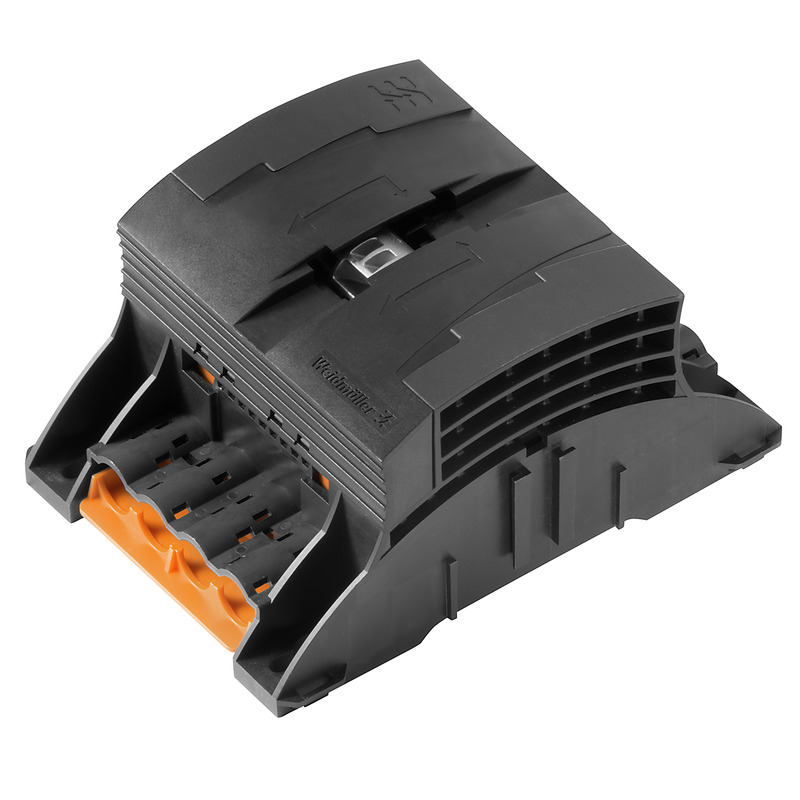

Wiring box for elevator shaftFP ESWB TERMINAL SET
Weidmuller 2524850000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-24-09
- eClass 9.0
- 27-14-24-09
- eClass 9.1
- 27-14-24-09
- ETIM 6.0
- EC000214
- ETIM 7.0
- EC000214
Connectable Conductors (Push In)
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.75 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible, min. H05(07) V-K
- 0.75 mm²
- Solid, max. H05(07) V-U
- 1.5 mm²
- Solid, min. H05(07) V-U
- 0.75 mm²
- Stripping length
- 12 mm
- w. plastic collar ferrule, DIN 46228 pt 4, max.
- 1.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.75 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.
- 1.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.75 mm²
Dimensions And Weights
- Depth
- 64.5 mm
- Depth (inches)
- 2.539 inch
- Height
- 122 mm
- Height (inches)
- 4.803 inch
- Net weight
- 261.28 g
- Weight
- 262 g
- Width
- 96 mm
- Width (inches)
- 3.78 inch
Further Technical Data
- Installation location
- Hoistway wall
- Snap-on
- No
- Type of fixing
- Screwed on wall
Material Data
- Colour
- black, orange
- Halogen
- No
- Housing main material
- Fiberglass-reinforced polyamide
- Material of eccentric disc
- Zinc
- Protection degree
- IP20
- Silicone
- No
- UL 94 flammability rating
- V-0
Product Information
- Product information
- The elevator shaft wiring box is currently only approved with the flat cable type 6G1.5+1x0.75mm²+4Filler (P/N 297 144) and 9G1.5+2xFiller (P/N 297 145) from manufacturer Dätwyler Cabling Solutions.Further versions on request.
Rated Data
- Rated current
- 6 A
- Rated impulse withstand voltage
- 4 kV
- Rated voltage
- 230 V
- Standards
- EN 81-20
Safety Note
- Safety notice
- Safety Information
Temperatures
- Operating temperature
- -5 °C...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -5 °C
- Storage temperature
- -5 °C...50 °C
- Storage temperature, max.
- 50 °C
- Storage temperature, min.
- -5 °C
- Temperature range, installation, max.
- 50 °C
- Temperature range, installation, min.
- 10 °C
