Description
Surge voltage arrester, Low voltage, TT nur für N-PEVPU II 1 N-PE 260 40/65

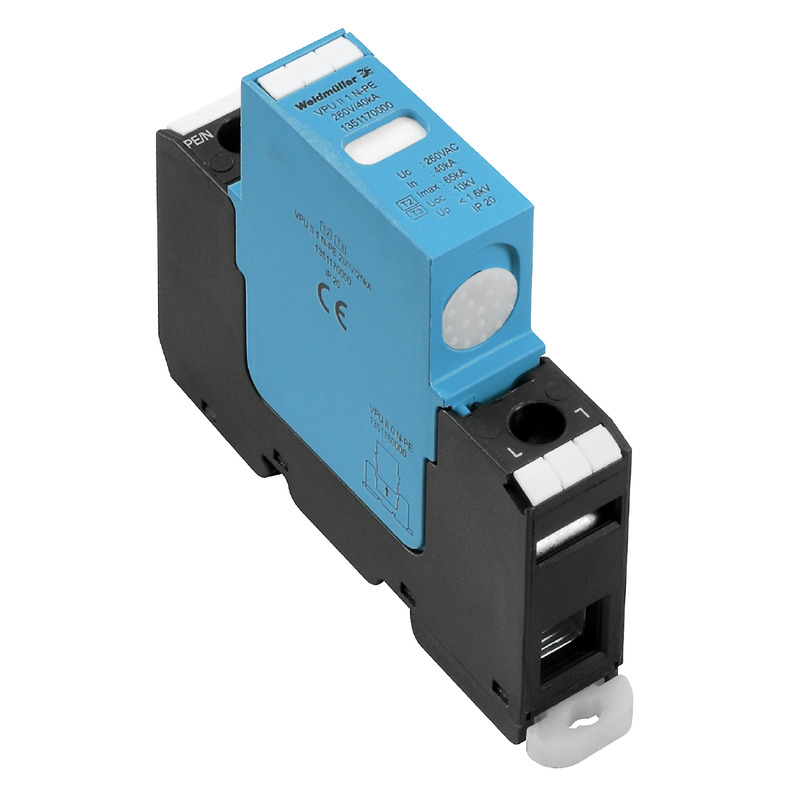

Weidmuller 2520470000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 1.5 mm²
- Clamping range, rated connection
- 16 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 50 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 1.5 mm²
- Connection cross-section, stranded, max.
- 50 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 3 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 25 mm²
- Wire connection cross-section, finely stranded, min.
- 1.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 1.5 mm²
Dimensions And Weights
- Depth
- 69 mm
- Depth (inches)
- 2.717 inch
- Height
- 94 mm
- Height (inches)
- 3.701 inch
- Mounting dimension - height
- 75 mm
- Net weight
- 120 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
General Data
- Colour
- black, blue
- Design
- Installation housing; 1TE, Insta IP 20
- Optical function display
- No
- Protection degree
- IP20
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Combined pulse U
- 10 kV
- Discharge current I
- 40 kA
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Leakage current at U
- 0 µA
- Low voltage network
- TT nur für N-PE
- Max. continuous voltage, Uc (N-PE)
- 260 V
- Number of poles
- 1
- Protection level U
- ≤ 1.6 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type II, Type III
- Requirements class, acc. to EN 61643-11
- T2, T3
- Response time
- ≤ 100 ns
- Short-circuit current rating I
- 100 kA
- Signalling contact
- No
- Standards
- IEC61643-11, EN61643-11
- Temporary surge voltage (over-voltage) - TOV
- 1,200 V
- Voltage type
- AC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
