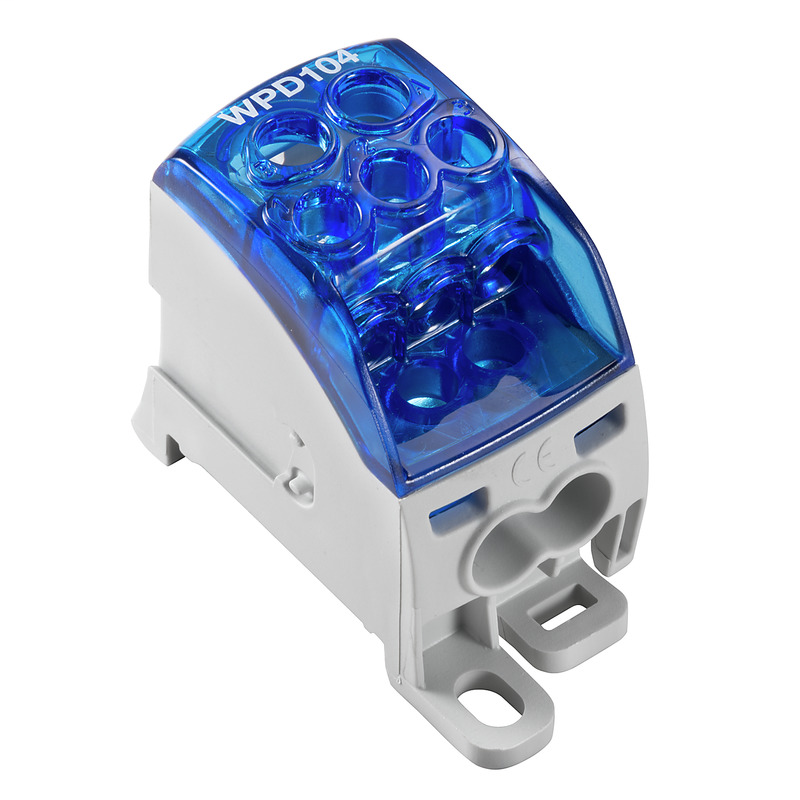

Weidmuller 2518250000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2518250000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Terminal rail / mounting plate
- Type of mounting
- Snap-on
Approvals
- Approvals
- CCSAUS, CENEXATEX, IECEXCENEX, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Csa Rating Data
- Certificate number (cCSAus)
- 70128467
Dimensions And Weights
- Depth
- 49 mm
- Depth (inches)
- 1.929 inch
- Height
- 68 mm
- Height (inches)
- 2.677 inch
- Net weight
- 106.4 g
- Width
- 31.5 mm
- Width (inches)
- 1.24 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- blue
- Material
- Wemid
- UL 94 flammability rating
- V-0
Product Information
- Product information
- Power distribution block (Bus Bar) also usable for distribution of neutral conductor and function earth.
Rating Data
- Current at maximum wires
- 101 A
- Rated AC voltage
- 1,000 V AC
- Rated current
- 101 A
- Rated DC voltage
- 1,000 V DC
- Standards
- IEC 60947-7-1, UL 1059
System Specifications
- Number of levels
- 1
- Version
- Screw connection
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
