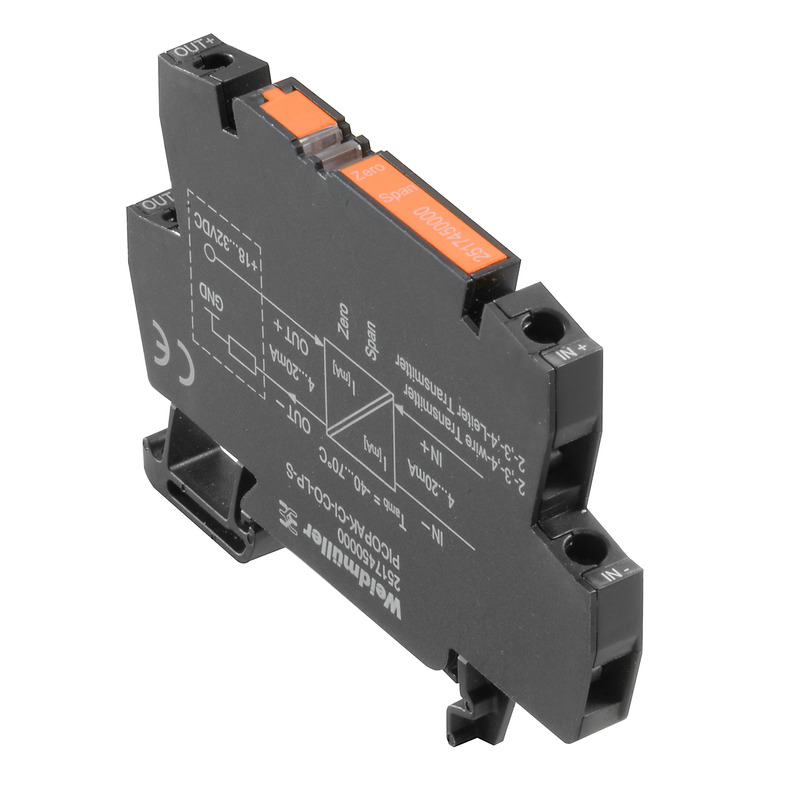

Weidmuller 2517450000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Signal converter/insulator, Signal converter/isolator, Output current loop powered, Input : 4-20 mA, Output : 4-20 mAPICOPAK-CI-CO-LP-S
Weidmuller 2517450000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUSEX, cURus
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-90
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Tightening torque, max.
- 0.6 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 12
- Wire cross-section, finely stranded, min. (AWG)
- AWG 20
Dimensions And Weights
- Depth
- 55 mm
- Depth (inches)
- 2.165 inch
- Height
- 79.4 mm
- Height (inches)
- 3.126 inch
- Net weight
- 48 g
- Weight
- 50 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
General Data
- Accuracy
- < 0.1 % of measuring range
- Configuration
- Potentiometer
- Galvanic isolation
- 2-way isolator
- Long-term drift
- ≤±0.05% of the measurement range / year
- Power consumption, max.
- 0.85 W
- Power consumption, typ.
- 0.55 W
- Rail
- TS 35
- Standard
- EN 61010-1, EN 61326-1, UL 61010-1:2012, 3rd Edition
- Step response time
- ≤ 5 ms
- Temperature coefficient
- ≤ 200 ppm/K
- Voltage supply
- Output loop powered
Input
- Input current
- 4...20 mA
- Number of inputs
- 1
- Sensor
- Current source
- Voltage drop, current input
- ≤3,5 V
Insulation Coordination
- EMC standards
- EN 61326-1
- Galvanic isolation
- 2-way isolator
- Insulation voltage
- 3.5 kV
- Pollution severity
- 2
- Rated voltage
- 300 V ACrms
- Standard
- EN 61010-1, EN 61326-1, UL 61010-1:2012, 3rd Edition
- Surge voltage category
- II
Output
- Cut-off frequency (-3 dB)
- ≥3,5 kHz
- load impedance current
- ≤ 600 Ω
- Number of outputs
- 1
- Output current
- 4...20 mA, loop-powered
- Supply voltage (output)
- 18…32 V
Product Information
- Product information
- The passive Isolator PicoPak-CI-CO-LP separates stand- analogue current signals. An analogue input current signal is converted linear and galvanic isolated into an analogue out- put current signal. The power supply occurs through the input and output measuring circuit. The measuring range can be adjusted if necessary via the potentiometers (Zero and Span) installed on the front.
Rated Data Ul
- Certificate No. (cURus)
- E141197
Temperatures
- Humidity
- 0...95 % (no condensation)
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
