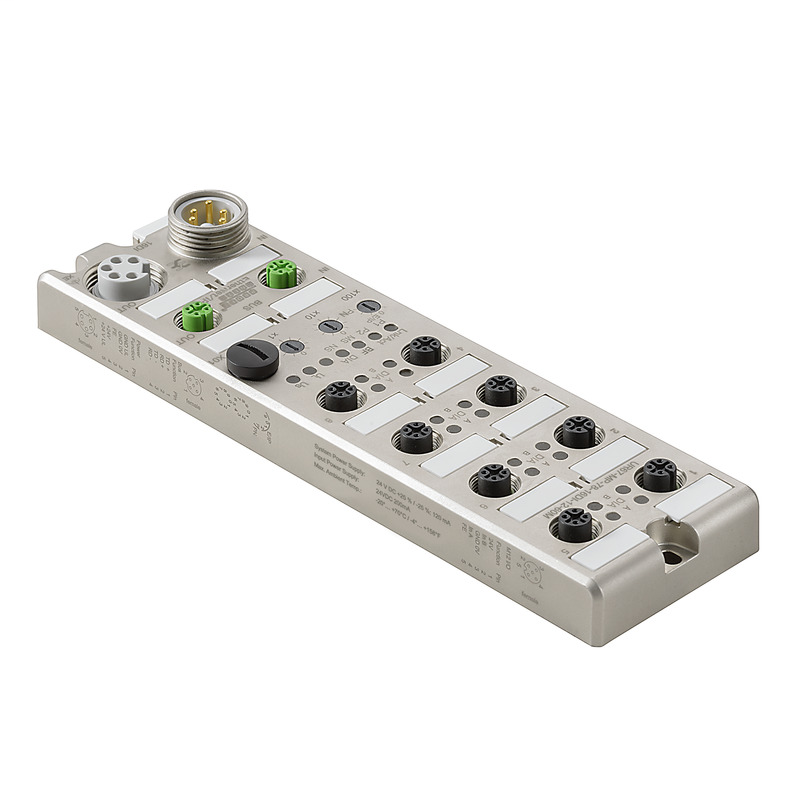

Weidmuller 2512830000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3, EtherNet/IP, EtherCAT, MultiprotocolUR67-MP-78-16DIO-12-60M
Weidmuller 2512830000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-24-26-02
- eClass 9.0
- 27-24-26-02
- eClass 9.1
- 27-24-26-02
- ETIM 6.0
- EC001597
- ETIM 7.0
- EC001597
Connections
- Fieldbus (BUS-IN)
- 1x M12 female 4-pole, D-coded
- Fieldbus (BUS-OUT)
- 1x M12 female 4-pole, D-coded
- I/O connections
- 8 x M12 socket 5-pole, A-coded
- Supply voltage (AUX-IN)
- 1x 7/8" plug 5-pole
- Supply voltage (AUX-OUT)
- 1x 7/8" socket 5-pole
Digital Inputs
- Input current, high
- Type 1 in acc. with IEC 61131-2
- Input current, low
- Type 1 in acc. with IEC 61131-2
- Input type
- Type 3 in acc. with IEC 61131-2
Digital Outputs
- max. current-carrying capacity per output signal
- 2 A
- Max. total current outputs
- 9 A (12 A see manual)
- Output voltage, high
- max. 2 V
- Output voltage, low
- min. (UL -1)
- Short-circuit proof
- Yes
Dimensions And Weights
- Height
- 17.3 mm
- Height (inches)
- 0.681 inch
- Length
- 206 mm
- Length (inches)
- 8.11 inch
- Net weight
- 500 g
- Width
- 59.6 mm
- Width (inches)
- 2.346 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Housing main material
- Zinc diecast
- Protection degree
- IP67
- UL 94 flammability rating
- UL 94
Supply Voltage
- Limits
- 18 V DC ... 30 V DC
- Operating voltage
- 24 V
- Power consumption of module electronics
- 100 mA typical
- Reverse polarity protection
- Yes
System Data
- Field bus protocol
- PROFINET, EtherCAT, EtherNet/IP
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -20 °C
