Weidmuller 2506090000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

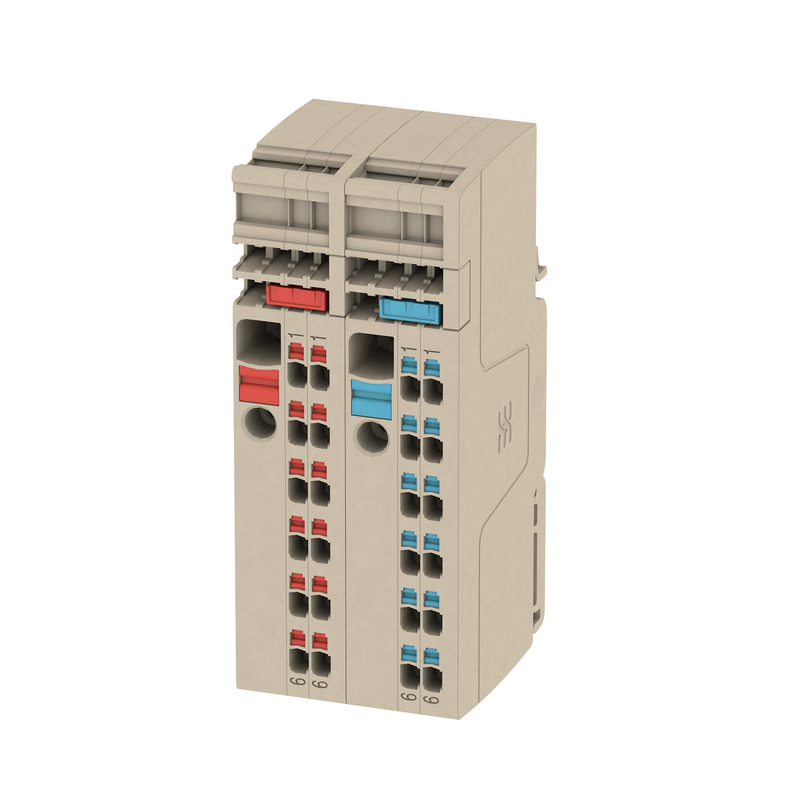

Modular distribution terminals, PUSH IN, 6 mm², 500 V, 35 A, dark beigeSET AAP11 6/1.5/12C
Weidmuller 2506090000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Rail
- Open sides
- right
- Type of fixing
- Snap-on
- Type of mounting
- TS 35
Approvals
- Approvals
- CE
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Additional Connection)
- Blade size, additional connection
- 0.4 x 2.0 mm
- Clamping range, further connection, max.
- 1.5 mm
- Clamping range, further connection, min.
- 0.14 mm
- Conductor cross-section, flexible, further connection, min.
- 0.5 mm
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 1 mm
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min.
- 0.5 mm
- Connection direction
- top
- Connection type, additional connection
- PUSH IN
- Cross-section for connected wire, AWG, additional connection, max.
- AWG 14
- Cross-section for connected wire, AWG, additional connection, min.
- AWG 26
- Cross-section for connected wire, flexible, further connection, max.
- 1.5 mm
- Cross-section for connected wire, multi-core, further connection, max.
- 1.5 mm
- Cross-section for connected wire, multi-core, further connection, min.
- 0.5 mm
- Cross-section for connected wire, solid-core, further connection, max.
- 1.5 mm
- Cross-section for connected wire, solid-core, further connection, min.
- 0.5 mm
- Rated cross-section, further connection
- 1.5 mm
- Stripping length , additional connection
- 8 mm
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.34 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A5
- Number of connections
- 1
- Stripping length
- 12 mm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 8
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 47 mm
- Depth (inches)
- 1.85 inch
- Depth including DIN rail
- 48 mm
- Height
- 85.5 mm
- Height (inches)
- 3.366 inch
- Net weight
- 73.547 g
- Width
- 35 mm
- Width (inches)
- 1.378 inch
Material Data
- Colour
- dark beige
- Colour of operational elements
- red
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 41 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 35 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 500 V
- Standards
- In accordance with IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 26
- Number of levels
- 1
- Number of potentials
- 2
- Number of potentials per tier
- 2
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
