Weidmuller 2503090000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

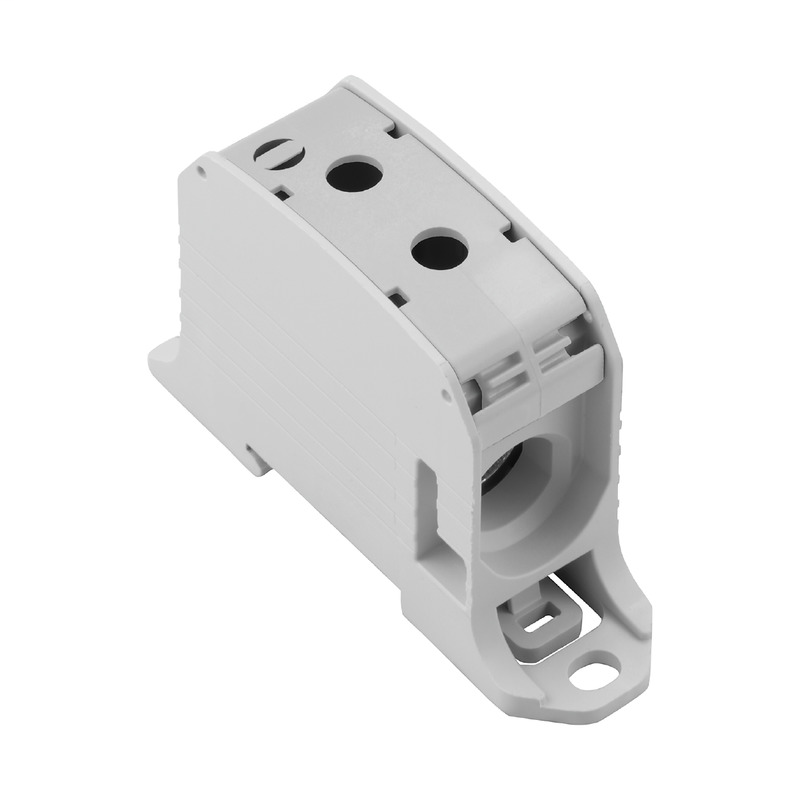

W-Series, Distribution block, Rated cross-section: 95 mm², Terminal rail / mounting plateWPD 131 1X95/1X95 GY
Weidmuller 2503090000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Terminal rail / mounting plate
- Type of mounting
- Snap-on
Approvals
- Approvals
- CENEXATEX, cURus, FIMKO, IECEXCENEX
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Dimensions And Weights
- Depth
- 57 mm
- Depth (inches)
- 2.244 inch
- Height
- 93 mm
- Height (inches)
- 3.661 inch
- Net weight
- 96 g
- Width
- 25.5 mm
- Width (inches)
- 1.004 inch
Material Data
- Colour
- Light Grey
- Material
- Wemid
- UL 94 flammability rating
- V-0
Product Information
- Product information
- You will find additional information in the downloadsection of the onlinecatalogue
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 7.42 W
- Rated AC voltage
- 1,000 V AC
- Rated cross-section
- 95 mm²
- Rated current
- 155 A
- Rated DC voltage
- 1,000 V DC
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1, UL 1059, CSA
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 0.14 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Version
- Screw connection
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
