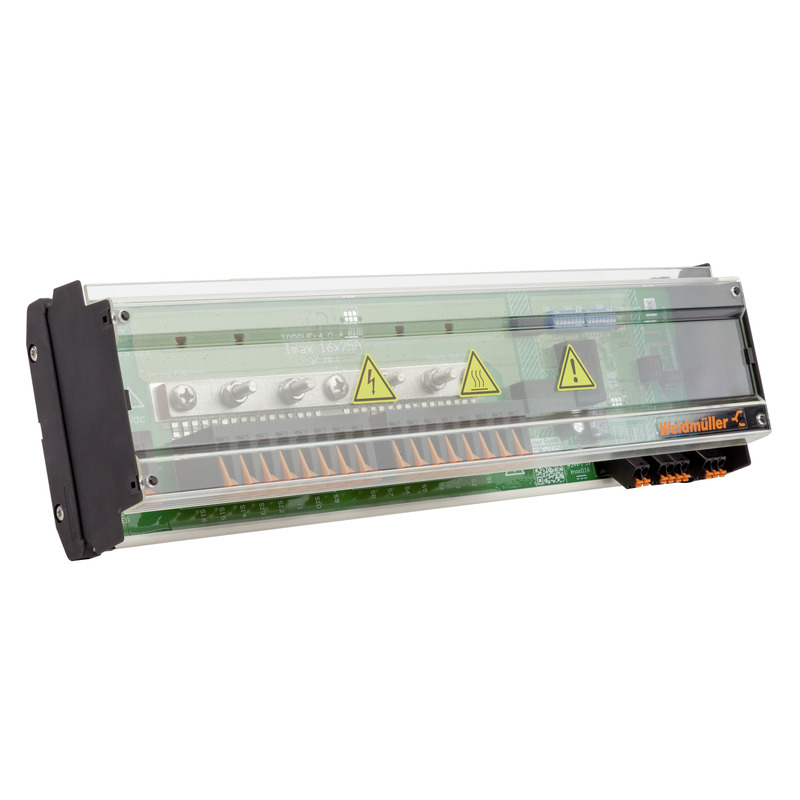

Weidmuller 2502520000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2502520000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 22-57-04-90
- eClass 9.0
- 22-57-92-03
- eClass 9.1
- 22-57-04-90
- ETIM 6.0
- EC002928
- ETIM 7.0
- EC002928
Dimensions And Weights
- Depth
- 368.9 mm
- Depth (inches)
- 14.524 inch
- Height
- 92.92 mm
- Height (inches)
- 3.658 inch
- Net weight
- 940 g
- Width
- 109.5 mm
- Width (inches)
- 4.311 inch
Technical Data
- Communication
- MODBUS RS485 RTU
- current measuring
- Shunt resistance 1 mOhm
- Height
- ≤ 2000 m
- Maximum current per string
- 15 A DC (-25…+70 °C), 25 A DC (-25…+60°C)
- Maximum number of strings
- 16
- Number of digital inputs
- 2
- Pollution severity
- 2
- Rated voltage (text)
- 1500 V DC
- Standards
- IEC/EN61010-1:2010, IEC/EN61010-2-030:2010, EN61326-1:2013
- String-current measurement error
- ± 300 mA from 3 A DC to 15 A DC
- String-voltage measurement error
- ± 18 V from 150 V DC to 1,500 V
- Supply current
- < 70 mA DC, 200 mA DC max.
- Voltage supply
- 19.2 – 28.8 V DC
Temperatures
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
