Description
HV4000/3-M12 F

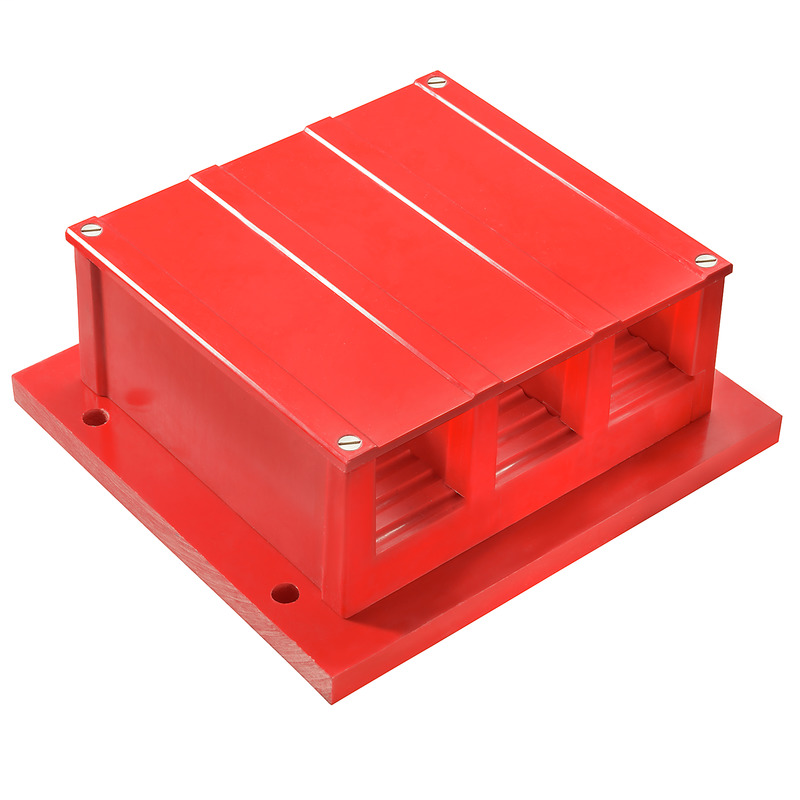

Weidmuller 2496050000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Cable lug to DIN 46234
- 10...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 10 mm²
- Clamping range, max.
- 240 mm²
- Clamping range, min.
- 10 mm²
- Clamping screw
- M 12
- Connection cross-section, finely stranded, max.
- 240 mm²
- Connection cross-section, finely stranded, min.
- 10 mm²
- Connection direction
- top, Bottom
- Number of connections
- 6
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 65 Nm
- Tightening torque, min.
- 63 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Diameter
- 11 mm
- Height
- 96.1 mm
- Height (inches)
- 3.783 inch
- Length
- 220 mm
- Length (inches)
- 8.661 inch
- Mounting dimension - height
- 130 mm
- Mounting dimension - width
- 240 mm
- Net weight
- 4,900 g
- Width
- 240 mm
- Width (inches)
- 9.449 inch
Rating Data
- Current at maximum wires
- 700 A
- Impulse voltage with epoxy resin partition plate
- 30 kV
- Pollution severity
- 3
- Rated cross-section
- 240 mm²
- Rated current
- 700 A
- Rated impulse withstand voltage
- 30 kV
- Rated voltage
- 4,000 V
- Standards
- EN 45545-1:2013, EN 45545-2:2013, EN 45545-5:2013, EN 50124-1:2015, EN 50125-1:2015, EN 50153:2014- 09, EN 50163:2005- 07, EN 60077-1-2:2002, EN 60529:2014- 09, EN 61373:2010, EN 62208:2011, EN 62262:2002
- Voltage with epoxy resin partition plate
- 4,000 V
Stud Connection
- Cable lug to DIN 46234
- 10...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 10 mm²
- Impulse voltage with epoxy resin partition plate
- 30 kV
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 65 Nm
- Tightening torque, min.
- 63 Nm
- Voltage with epoxy resin partition plate
- 4,000 V
Temperatures
- Continuous operating temp., max.
- 140 °C
- Continuous operating temp., min.
- -50 °C
