Description

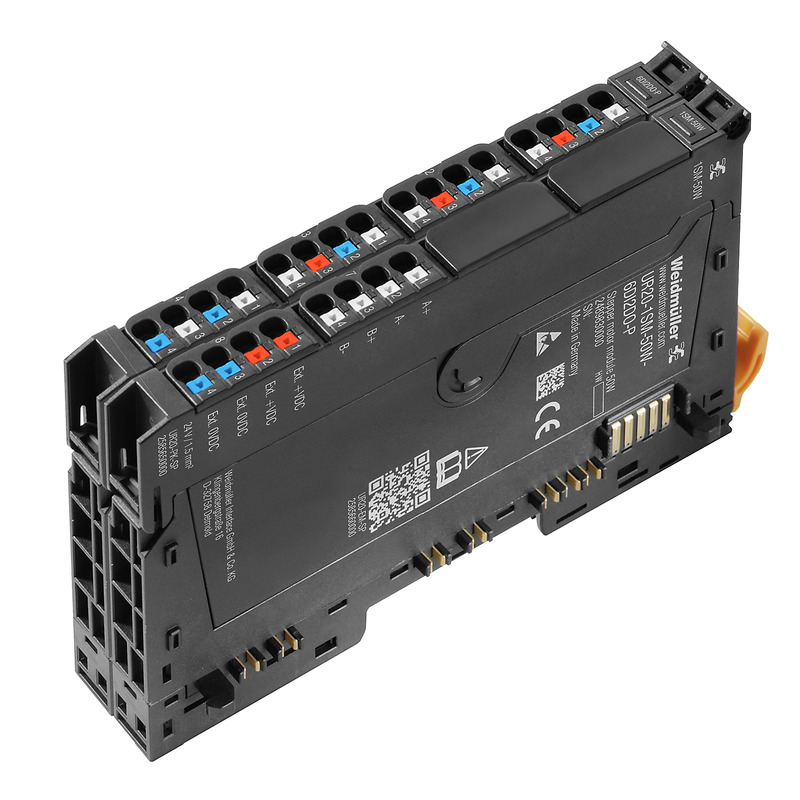

Remote I/O module, IP20, Digital signals, Special moduleUR20-1SM-50W-6DI2DO-P
Weidmuller 2489830000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- DEMKOATEX, IECEXULD
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-24-26-08
- eClass 9.0
- 27-24-26-08
- eClass 9.1
- 27-24-26-05
- ETIM 6.0
- EC001604
- ETIM 7.0
- EC001604
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire cross-section, solid, min. (AWG)
- AWG 26
Digital Outputs
- Actuator connection
- 2-wire
- Feedback-free
- Yes
- Individual channel diagnosis
- No
- Inductive load (DC13)
- 0.2 Hz
- Lamp load (12 W)
- 1 kHz
- Max. response time, high
- 250 μs
- Max. response time, low
- 100 μs
- Module diagnosis
- Yes
- Number
- 1
- Number of digital outputs
- 2
- Resistive load (min. 47 Ω)
- 1 kHz
- Short-circuit-proof
- Yes
- Switch-off energy (inductive)
- < 150 mJ / channel
Dimensions And Weights
- Depth
- 76 mm
- Depth (inches)
- 2.992 inch
- Height
- 120 mm
- Height (inches)
- 4.724 inch
- Mounting dimension - height
- 128 mm
- Net weight
- 173 g
- Width
- 23 mm
- Width (inches)
- 0.906 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (storage)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (operation)
- ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Air pressure (transport)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Shock
- 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
- Surge voltage category
- II
- Test voltage
- 500 V
- UL 94 flammability rating
- V-0
- Vibration resistance
- 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Power Supply
- Current consumption from I
- 10 mA + load
- Reverse polarity protection
- Yes
- Voltage supply
- 24 V DC +20 %/ -15 %
System Data
- Connection type
- 4-wire
- Galvanic isolation
- DC 500 V between current paths
- Interface
- u-remote system bus
- Transmission speed of system bus, max.
- 48 Mbit/s
Temperatures
- Operating temperature
- -20 °C ... +60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40 °C ... +85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
