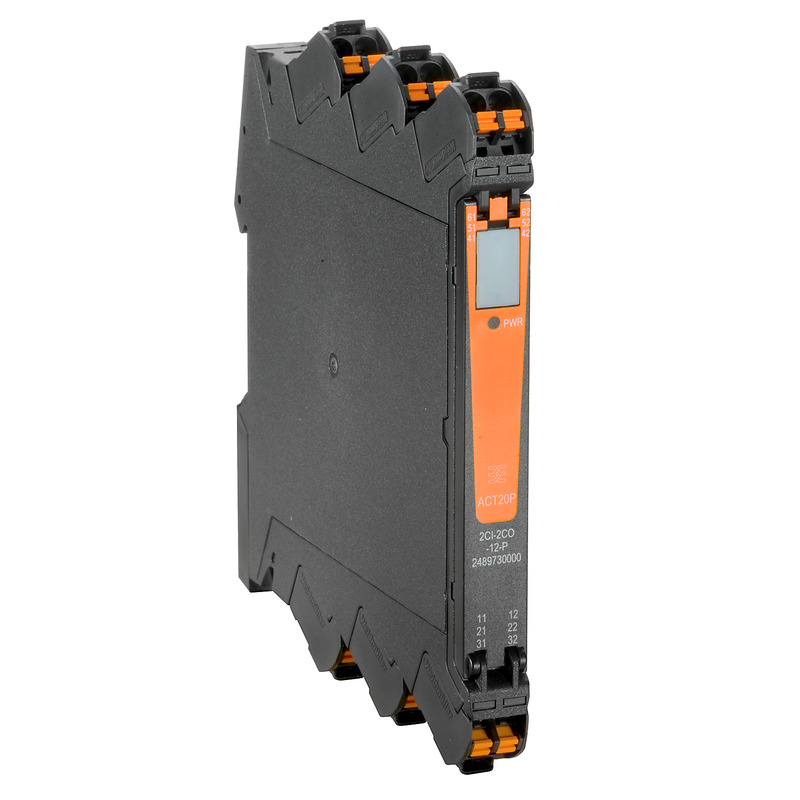

Weidmuller 2489730000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Signal converter/isolator, dual channel, Input : 2 x 4-20 mA, Output : 2 x 4-20 mAACT20P-2CI-2CO-12-P
Weidmuller 2489730000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-90
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.2 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.2 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.2 mm²
Dimensions And Weights
- Depth
- 113.7 mm
- Depth (inches)
- 4.476 inch
- Height
- 127.1 mm
- Height (inches)
- 5.004 inch
- Net weight
- 130 g
- Width
- 12.5 mm
- Width (inches)
- 0.492 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Accuracy
- < 0.1 % of end value
- Configuration
- none
- Current consumption
- ≤60 mA (24V power supply, 20mA output)
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Rail
- TS 35
- Step response time
- ≤ 0,5 ms
- Temperature coefficient
- 80 ppm/K
- Voltage supply
- 20…30 V DC
Input
- Input current
- 0...20 mA, 4…20mA
- Input signal
- HART signal® bidirectional
- Input voltage
- ≤ 28 V DC
- Number of inputs
- 2
- Sensor supply
- > 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit
- Voltage drop
- ≤ 1 V
Insulation Coordination
- EMC standards
- EN 61010-1:2011, UL 61010-1, EN 61326-1
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Insulation voltage
- 2 kV inputs / outputs / power supply
- Pollution severity
- 2
- Surge voltage category
- III
Output
- load impedance current
- < 300 Ω, per channel
- Number of outputs
- 2
- Output current
- 0...20 mA, 4...20 mA, HART® digital signal
Product Information
- Product information
- The dual-channel, non-adjustable DC isolating amplifier ACT20P-2CI-2CO isolates analogue standard current source signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (5-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 5-way isolation between input, output and supply.
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature
- -20 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
