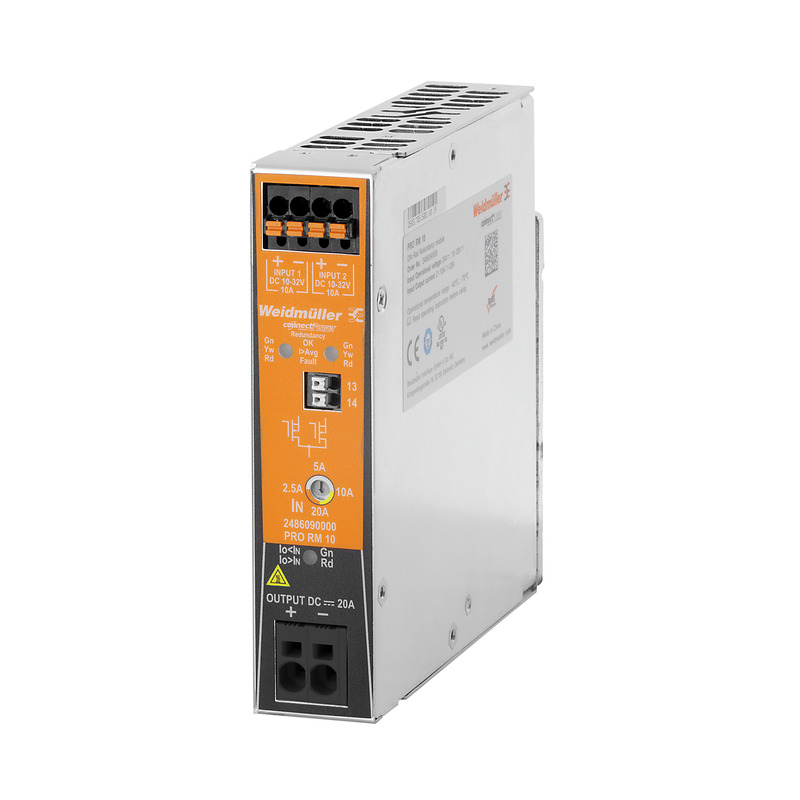

Weidmuller 2486090000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Redundancy module, 24 V DCPRO RM 10
Weidmuller 2486090000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- DNV GL, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-04-07-01
- eClass 9.0
- 27-04-07-01
- eClass 9.1
- 27-04-07-01
- ETIM 6.0
- EC002540
- ETIM 7.0
- EC002540
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , min.
- 0.2 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.2 mm²
- Connection system
- PUSH IN
- Number of terminals
- 4 (+,+,−,−)
- Screwdriver blade
- 0.6 x 3.5
- Wire connection cross section, flexible (input), max.
- 2.5 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 8
- Conductor cross-section, AWG/kcmil , min.
- 24
- Conductor cross-section, flexible , max.
- 6 mm²
- Conductor cross-section, flexible , min.
- 0.2 mm²
- Conductor cross-section, rigid , max.
- 10 mm²
- Conductor cross-section, rigid , min.
- 0.2 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (+ / -)
- Screwdriver blade
- 0.6 x 3.5
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 1.5 mm²
- Wire connection cross-section, flexible (signal), min.
- 0.2 mm²
- Wire connection method
- PUSH IN
- Wire cross-section, AWG/kcmil , max.
- 16
- Wire cross-section, AWG/kcmil , min.
- 24
- Wire cross-section, solid , max.
- 1.5 mm²
- Wire cross-section, solid , min.
- 0.2 mm²
Dimensions And Weights
- Depth
- 125 mm
- Depth (inches)
- 4.921 inch
- Height
- 130 mm
- Height (inches)
- 5.118 inch
- Net weight
- 47 g
- Weight
- 497 g
- Width
- 30 mm
- Width (inches)
- 1.181 inch
Emc / Shock / Vibration
- Shock resistance IEC 60068-2-27
- 30 g in all directions
- Vibration resistance IEC 60068-2-6
- 2.3 g (on DIN rail)
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Degree of efficiency
- > 98%
- Derating
- > 60°C / 75% @ 70°C
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Mounting position, installation notice
- Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
- Operating temperature
- -40 °C...70 °C
- Protection degree
- IP20
Input
- Connection system
- PUSH IN
- DC input voltage range
- 10 … 32 V DC
- Input current
- 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C)
- Rated input voltage
- 24 V DC
Insulation Coordination
- Insulation voltage input / earth
- 0.5 kV
- Insulation voltage output / earth
- 0.5 kV
- Protection class
- III, with no ground connection, for SELV
Output
- Connection system
- PUSH IN
- Continous output current @ U
- 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C)
- Rated output voltage
- VINPUT-typ. 0.13 V
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
