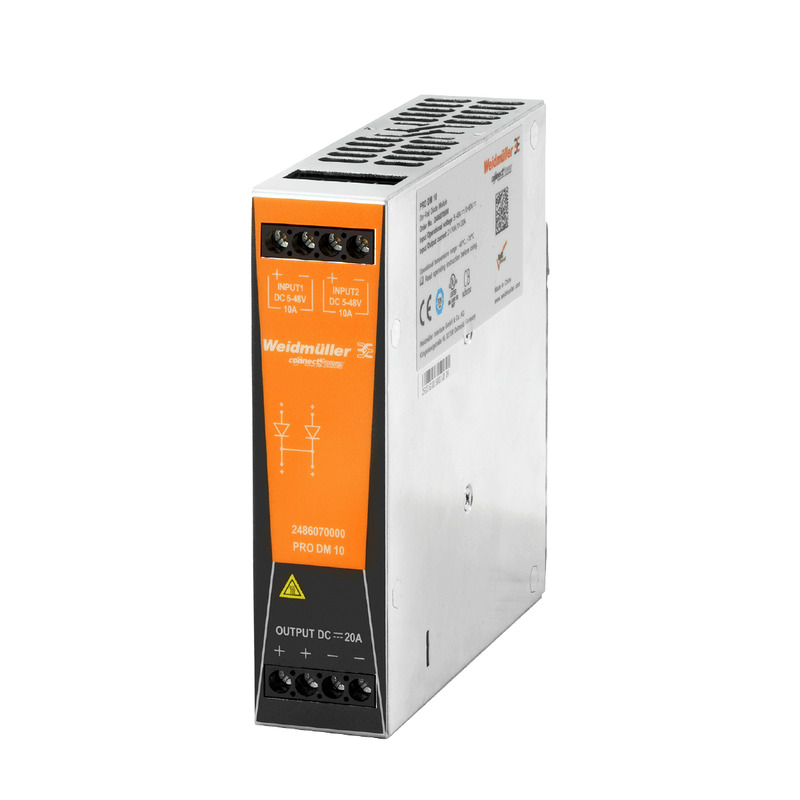

Weidmuller 2486070000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 10
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , min.
  • 0.22 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.18 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 4 (1+, 2+, 1-, 2-)
• Screwdriver blade
  • 0.8 x 4.0, PZ 1
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection cross section, flexible (input), max.
  • 4 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 10
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , max.
  • 6 mm²
• Conductor cross-section, flexible , min.
  • 0.22 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.18 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 4 (++ / --)
• Screwdriver blade
  • 0.8 x 4.0, PZ 1
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm

Dimensions And Weights

• Depth
  • 125 mm
• Depth (inches)
  • 4.921 inch
• Height
  • 125 mm
• Height (inches)
  • 4.921 inch
• Net weight
  • 518 g
• Width
  • 32 mm
• Width (inches)
  • 1.26 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 55022, EN 55024, EN 61000-3-2,-3, EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)
• Shock resistance IEC 60068-2-27
  • 30 g in all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g (on DIN rail)

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Degree of efficiency
  • > 97% @ 24 V Input voltage
• Derating
  • > 60°C / 75% load @ 70°C
• Housing version
  • Metal, corrosion resistant
• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Mounting position, installation notice
  • Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
• MTBF
  • > 150,000 h in accordance with MIL-HDBK-217 (40°C, Bellcore), > 750,000 h in accordance with IEC 61709 (40°C, SN29500)
• Operating temperature
  • -40 °C...70 °C
• Protection degree
  • IP20
• Surge voltage category
  • III

Input

• Connection system
  • Screw connection
• DC input voltage range
  • 0...60 V DC
• Input current
  • 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C)
• Input fuse (internal)
  • No
• Rated input voltage
  • 24 V DC

Insulation Coordination

• Insulation voltage input / earth
  • 0.5 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • III, with no ground connection, for SELV
• Surge voltage category
  • III

Output

• Connection system
  • Screw connection
• Continous output current @ U
  • 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C)
• Protection against inverse voltage
  • Yes
• Rated output voltage
  • VINPUT-typ. 0.7 V
• Residual ripple, breaking spikes
  • Dependent on the power supplies used

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
