Weidmuller 2470700000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

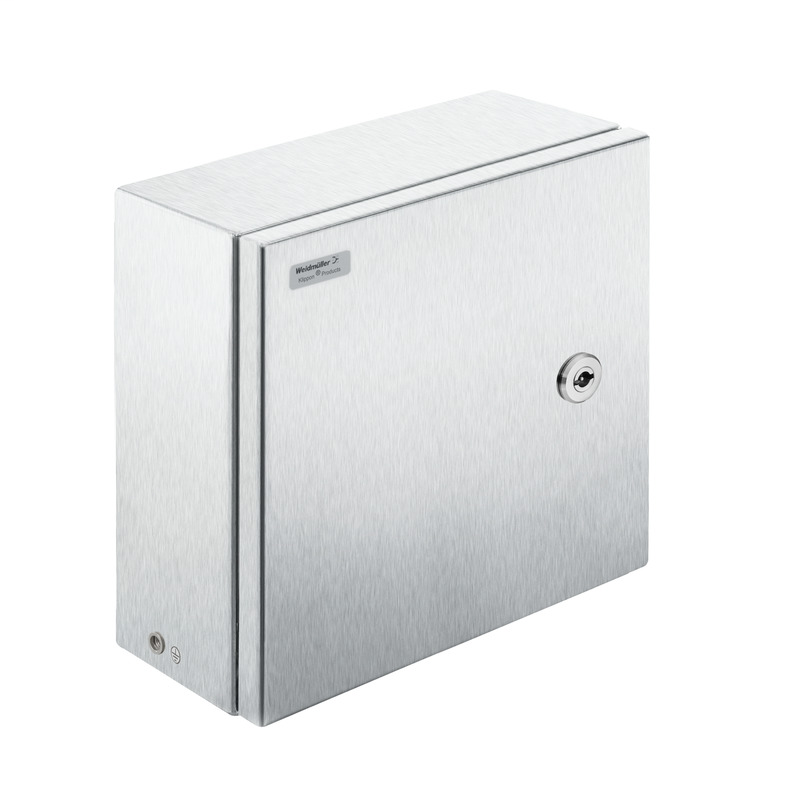

Klippon EBi QL (Essential Box industrial - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 299.5 mm, Width: 299.5 mm, Depth: 150 mm, Material: Stainless steel 1.4301 (304), Brushed, silverKEBI QL 303015 S2B0
Weidmuller 2470700000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, DNV GL
- ROHS
- Conform
- UL File Number Search
- E243298
Certificate Numbers Enclosure
- Certificate no. (cULus)
- E243298
Classifications
- eClass 10.0
- 27-18-01-01
- eClass 9.0
- 27-18-01-01
- eClass 9.1
- 27-18-92-90
- ETIM 6.0
- EC000261
- ETIM 7.0
- EC000261
Dimensions And Weights
- Depth
- 150 mm
- Depth (inches)
- 5.905 inch
- Diameter
- 9 mm
- Height
- 299.5 mm
- Height (inches)
- 11.791 inch
- Mounting dimension - height
- 250 mm
- Mounting dimension - width
- 250 mm
- Net weight
- 5,260 g
- Wall thickness, max.
- 1.25 mm
- Wall thickness, min.
- 1.25 mm
- Width
- 299.5 mm
- Width (inches)
- 11.791 inch
General Information
- Areas of use
- Harbour facilities, Machine construction, Transportation, Marine engineering, Packaging industry, Process industry
- Enclosure attachment
- Fixing lugs, Installation through the housing rear wall
- Impact resistance
- 10.00 J
- Installation advice
- Welded assembly angle, Mounting plate
- Integral fixing
- Screwed
- Lid attachment
- Quarter-turn fastener with slotted insert
- Material
- Stainless steel 1.4301 (304)
- Material thickness
- 1.25 mm
- Material thickness of cover
- 1.25 mm
- Material thickness of enclosure
- 1.25 mm
- Material thickness of flange
- 1.25 mm
- Opening angle lid
- 125 °
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Protection degree
- IP66
- Seal material
- Polyurethane foamed
- Seal material of cover
- Polyurethane foamed
- Standards
- DIN EN 62208, IEC 60529
- Surface finish
- Brushed
Housing Earth
- Earth, enclosure, cover
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
- Earth, enclosure, external
- M6 earth tab rivet
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
