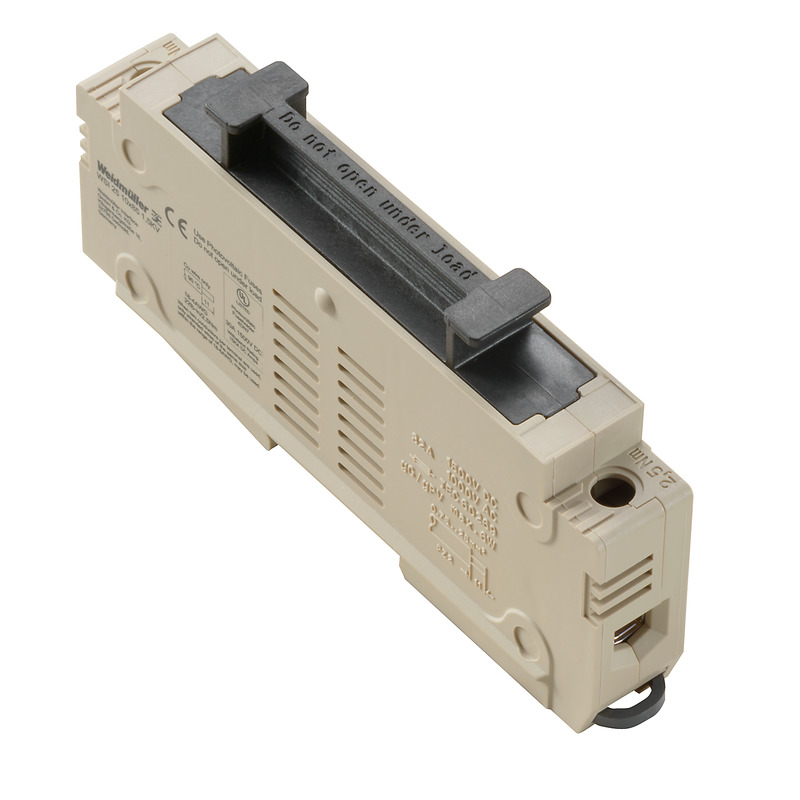

W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection, TS 35WSI 25 10X85 1.5KV
Weidmuller 2469360000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- TS 35
- Open sides
- closed
- Snap-on
- No
- Type of fixing
- Snap-on
- Type of mounting
- Snap-on
- With snap-in pegs
- No
Approvals
- Approvals
- UL
- ROHS
- Conform
- UL File Number Search
- E355388
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Rated Connection)
- Blade size
- Gr. PZ2
- Clamping range, max.
- 25 mm²
- Clamping range, min.
- 0.75 mm²
- Clamping screw
- M 5
- Connection cross-section, stranded, max.
- 25 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A7
- Number of connections
- 2
- Stripping length
- 11 mm
- Tightening torque, max.
- 2.5 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 4
- Wire connection cross section AWG, min.
- AWG 18
- Wire connection cross section, finely stranded, max.
- 16 mm²
- Wire connection cross-section, finely stranded, min.
- 0.75 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.75 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
Dimensions And Weights
- Depth
- 65 mm
- Depth (inches)
- 2.559 inch
- Height
- 130 mm
- Height (inches)
- 5.118 inch
- Net weight
- 0.01 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
Fuse Terminals
- Cartridge fuse
- max. 6.0 W for 10x85, 14x85 gPV
- Display
- Without LED
- Fuse holder (cartridge holder)
- pluggable
Material Data
- Colour
- dark beige
- Material
- PA
- UL 94 flammability rating
- V-0
Product Information
- Product information
- Impulse voltage up to 12kV tested.
Rating Data
- Current at maximum wires
- 32 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 3.23 W
- Rated AC voltage
- 1,000 V AC
- Rated cross-section
- 25 mm²
- Rated current
- 32 A
- Rated DC voltage
- 1,500 V DC
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 1,500 V
- Rated voltage to adjoining terminal
- 1,500 V
- Standards
- IEC 60269-6
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 0.32 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 125 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UL)
- E355388
