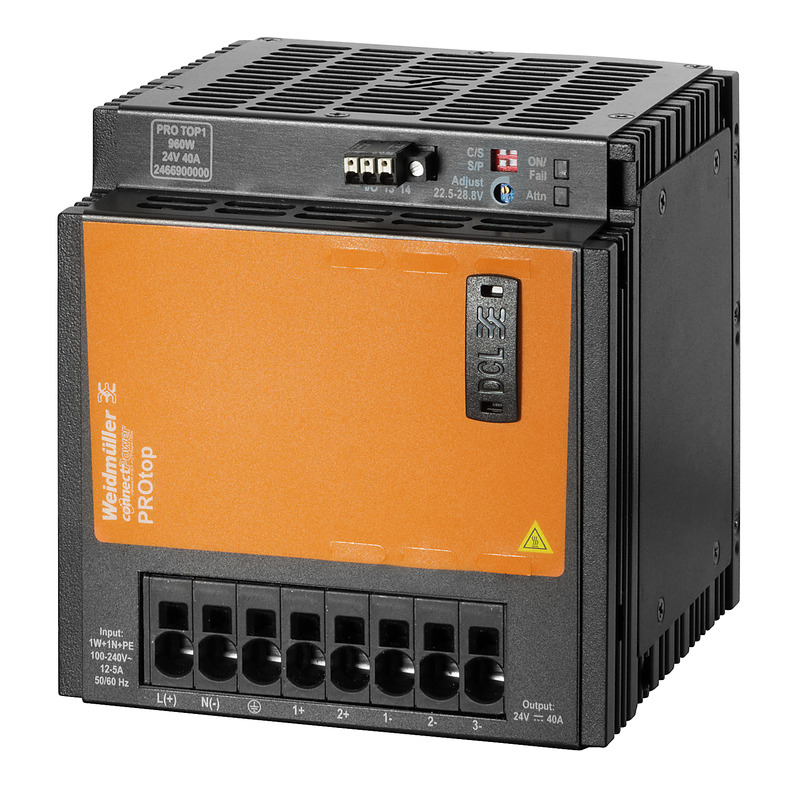

Weidmuller 2466920000

Approvals

• Approvals
  • CULUS, CULUSEX, DNV GL, TUEV
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 4
• Conductor cross-section, AWG/kcmil , min.
  • 20
• Conductor cross-section, flexible , min.
  • 0.75 mm²
• Conductor cross-section, rigid , max.
  • 16 mm²
• Conductor cross-section, rigid , min.
  • 0.75 mm²
• Connection system
  • PUSH IN
• Number of terminals
  • 3 for L/N/PE
• Screwdriver blade
  • 0.6 x 3.5
• Wire connection cross section, flexible (input), max.
  • 16 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 4
• Conductor cross-section, AWG/kcmil , min.
  • 20
• Conductor cross-section, flexible , max.
  • 16 mm²
• Conductor cross-section, flexible , min.
  • 0.75 mm²
• Conductor cross-section, rigid , max.
  • 16 mm²
• Conductor cross-section, rigid , min.
  • 0.75 mm²
• Connection system
  • PUSH IN
• Number of terminals
  • 5 (+ + / - - -)
• Screwdriver blade
  • 0.6 x 3.5

Connection Data (Signal)

• Wire connection cross-section, flexible (signal), max.
  • 1.5 mm²
• Wire connection cross-section, flexible (signal), min.
  • 0.14 mm²
• Wire connection method
  • PUSH IN
• Wire cross-section, AWG/kcmil , max.
  • 16
• Wire cross-section, AWG/kcmil , min.
  • 26
• Wire cross-section, solid , max.
  • 1.5 mm²
• Wire cross-section, solid , min.
  • 0.14 mm²

Dimensions And Weights

• Depth
  • 125 mm
• Depth (inches)
  • 4.921 inch
• Height
  • 130 mm
• Height (inches)
  • 5.118 inch
• Net weight
  • 3,382 g
• Width
  • 124 mm
• Width (inches)
  • 4.882 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 30 g in all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g (on DIN rail), 4 g (with direct mounting)

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• AC failure bridging time @ I
  • > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
• Conformal coating
  • No
• Degree of efficiency
  • 94%
• Derating
  • > 60°C (2.5% / 1°C)
• Earth leakage current, max.
  • 3.5 mA
• Housing version
  • Metal, corrosion resistant
• Mounting position, installation notice
  • Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load
• MTBF
  • > 1.000.000 h according IEC 1709 (SN29500)
• Operating temperature
  • -25 °C...70 °C
• Power factor (approx.)
  • > 0.9
• Power loss, idling
  • 10 W
• Power loss, nominal load
  • 61.3 W
• Protection degree
  • IP20
• Series switching capability
  • No
• Short-circuit protection
  • Yes, internal
• Start-up
  • ≥ -40 °C
• Surge voltage category
  • III

Input

• AC input voltage range
  • 85…277 V AC
• Connection system
  • PUSH IN
• DC input voltage range
  • 80 ... 410 V DC
• Dielectric strength
  • max. 300 V AC ≤ 15 s
• Frequency range AC
  • 45…65 Hz
• Input fuse (internal)
  • Yes
• Inrush current
  • max. 15 A
• Rated input voltage
  • 100 - 240 V AC / 120 - 340 V DC
• Recommended back-up fuse
  • 16 A, DI / 16 A, Char. B / 16 A, Char C
• Surge protection
  • Varistor

Insulation Coordination

• Humidity at operating temperature
  • 5...95 %, no condensation
• Insulation voltage input / earth
  • 3.2 kV
• Insulation voltage, input/output
  • 3.5 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • I, with PE connection
• Surge voltage category
  • III

Output

• Connection system
  • PUSH IN
• DCL - peak load reserve
  • 150 % (5 s); 400 % (15 ms)
• Mains failure bridge-over time
  • > 20 ms @ 115V AC/ 230 VAC
• Nominal output current for U
  • 20 A @ 60 °C
• Output power
  • 960 W
• Output voltage
  • 45...56 V
• Parallel connection option
  • yes, max 10
• Protection against inverse voltage
  • Yes
• Ramp-up time
  • ≤ 100 ms
• Rated output voltage
  • 48 V DC ± 1 %
• Reserve capacity @ U
  • 130% permanent at ≤ 40°C, 150 % (5 s)
• Residual ripple, breaking spikes
  • < 100 mVPP
• Triggerable circuit breakers
  • C2, C4, C6, B6, B10, B2, B4

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• LED green/red
  • Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error

Temperatures

• Humidity at operating temperature
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
