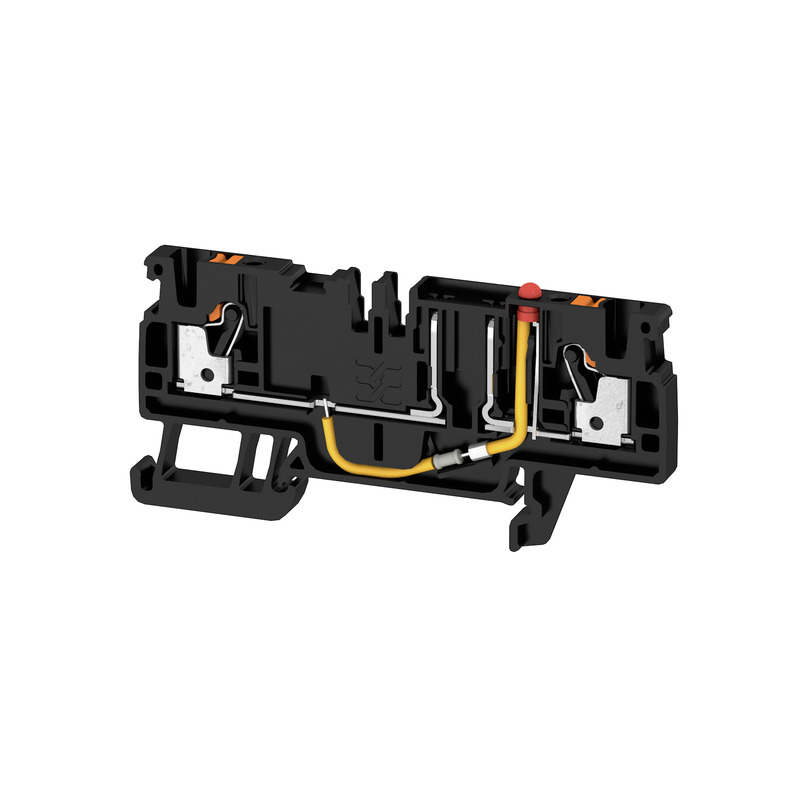

Weidmuller 2466600000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Fuse terminal, PUSH IN, 2.5 mm², 24 V, 10 A, blackAFS 2.5 CF 2C 24V BK
Weidmuller 2466600000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Rail
- Open sides
- right
- Snap-on
- No
- Type of fixing
- Snap-on
- Type of mounting
- TS 35
- With snap-in pegs
- No
Approvals
- Approvals
- CE, DNV GL, EAC
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A3
- Number of connections
- 2
- Stripping length
- 10 mm
- Twin wire-end ferrules, max.
- 0.75 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 28
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 37.65 mm
- Depth (inches)
- 1.482 inch
- Depth including DIN rail
- 38.4 mm
- Height
- 77.5 mm
- Height (inches)
- 3.051 inch
- Net weight
- 9.52 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
Fuse Terminals
- Cartridge fuse
- mini fuse
- Display
- Red LED
- Fuse holder (cartridge holder)
- Pivoting
- Leakage current, max.
- 0.5 mA
Material Data
- Colour
- black
- Material
- Wemid
Rating Data
- Current at maximum wires
- 10 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Rated current
- 10 A
- Rated voltage
- 24 V
- Rated voltage to adjoining terminal
- 500 V
- Standards
- In accordance with IEC 60947-7-3
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
System Specifications
- End cover plate required
- Yes
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- with LED
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
