Weidmuller 2464200060
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

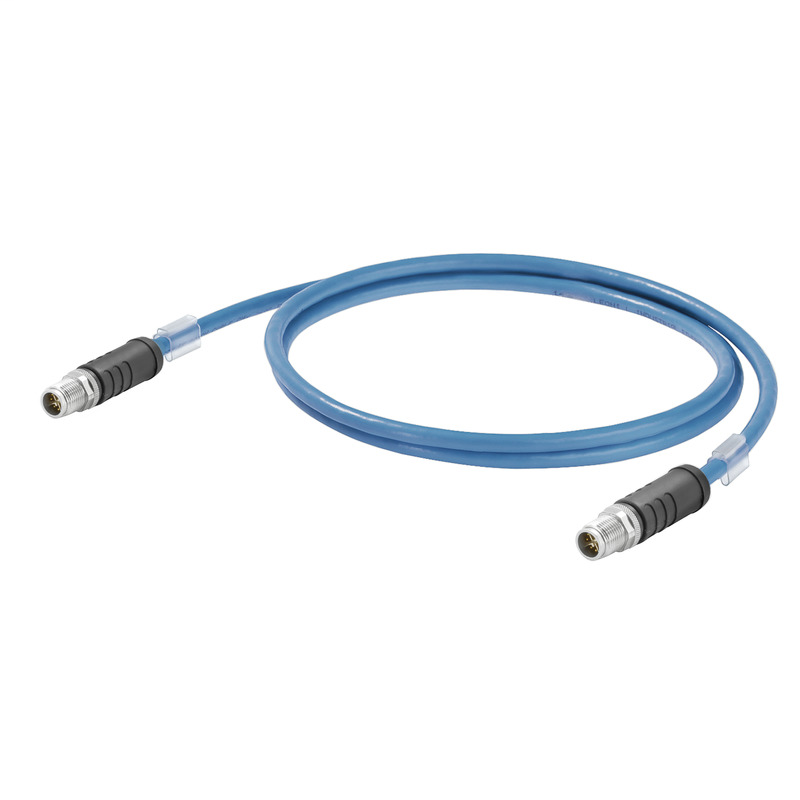

System cable, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), Radox EM 104, 6 mIE-C6GB8RB0060XCSXCS-E
Weidmuller 2464200060 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Cross-section
- 4*2*AWG24/7 - 4*2*0.2 mm²
- Insulation cross-section
- 1.35 mm
- Material sheath
- Radox EM 104
- Sheath diameter, max.
- 8.6 mm
- Sheath diameter, min.
- 7.6 mm
- Sheathing colour
- blue
- Shielding
- S/FTP
- Strands
- 7
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.35 mm
- Length
- 6 m
- Length (inches)
- 0.236 inch
- Net weight
- 0.001 g
Electrical Properties Of Cable
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Speed
- 10 GBit/s
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- very good
- Corrosiveness of fumes
- to IEC 60754-2
- Halogen
- halogen-free, according to IEC 60754-2
- Impervious to smoke
- According to BS 6853 Appendix D, According to IEC 61034-2, According to UL1685, 12 (FT4 exp.)
- Min. bending radius, repetitive
- 4 x cable diameter
- Speed
- 10 GBit/s
Plug
- Connector left
- M12 X-type IP 67 straight male
- Connector right
- M12 X-type IP 67 straight male
Standards
- Connector standard
- IEC 61076-2-109
- Corrosiveness of fumes
- to IEC 60754-2
- Fire safety for railway vehicles
- According to EN 45545, HL1 - HL3, According to DIN 5510 1-4, According to UNI CEI 11170, LR1-LR4, According to NFPA 130, According to BS 6853, GM/RT 2130, la,lb, II, According to NF F16-101, A1, A2, B
- Flames propagate vertically on bundled cables
- in accordance with IEC 60332-1-2, EN 50305, According to IEC 60332-3-25 D, According to BS 6853 Appendix D, According to NF C32-070, 2.1, According to NF C32-070, 2.2, According to UL1685, 12 (FT4 exp.), in accordance with EN 50266
- Fluorine content
- According to EN 60684-2 Section 45.2
- Hydrogen halide content
- According to EN-50267-2-1
- Impervious to smoke
- According to BS 6853 Appendix D, According to IEC 61034-2, According to UL1685, 12 (FT4 exp.)
- Poisonous gases
- According to BS 6853 Appendix B
Temperatures
- Operating temperature
- -50 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -50 °C
