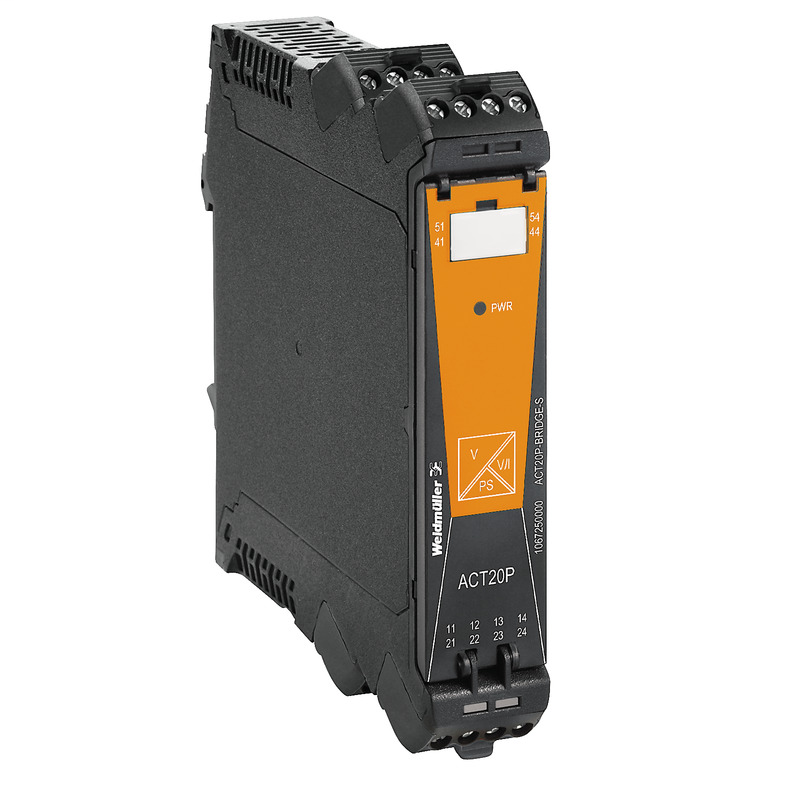

Weidmuller 2456820000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-90
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Type of connection
  • PUSH IN
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.2 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.2 mm²
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.2 mm²

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 127.1 mm
• Height (inches)
  • 5.004 inch
• Net weight
  • 157 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Configuration
  • DIP switch and button
• Linearity
  • Typically ± 0.05 % of signal range
• Long-term drift
  • 0.1 % / 10.000 h
• Power consumption
  • 3 W @ 24 V DC
• Rail
  • TS 35
• Repeat accuracy
  • ± 0.05 % of final value
• Step response time
  • < 400 ms (10…90 %)
• Temperature coefficient
  • typ. 0.005 % / °C
• Voltage supply
  • 10…60 V DC

Input

• Bridge sensitivity
  • 1.0 mV / V to 5.0 mV / V
• Bridge supply voltage
  • 5 V or 10 V
• Input measurement range
  • ± 10 mV / ± 20 mV / ± 30 mV / ± 50 mV (adjustable)
• Number of inputs
  • 1
• Sensor
  • Resistance measuring bridge, Total resistance of all parallel resistance measuring bridges: min. 87Ω
• Sensor supply
  • 120 mA @ 10 V (= 4 x 350 Ω bridge resistors)

Insulation Coordination

• EMC standards
  • EN 61326
• Insulation voltage
  • 5.7 kV (input / output, input / supply)
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • III

Output

• load impedance current
  • ≤ 600 Ω
• load impedance voltage
  • 600 Ω
• Output current
  • 0…22 mA (adjustable)
• Output voltage, note
  • 0…11 V (adjustable)
• Type
  • Voltage and current output (configurable)

Output (Analogue)

• Type (analogue output)
  • Voltage and current output (configurable)

Product Information

• Product information
  • The ACT20P-BRIDGE-P bridge measuring transducer converts measuring bridge voltages into standard signals. Buttons are used for adjustment to the measuring bridge connected. The bridge measuring transducer can supply up to 4 parallel-connected measuring bridges each with 350 Ω. The device supports simple compensation of the tare weight with a separate input for an external button or an external PLC signal. The power supply is galvanically isolated from input and output (3-way isolation).T Features 4-wire and 6-wire measurement Supply of up to 4 parallel-connected measuring bridges each with 350 Ω Input and output ranges can be adjusted via DIP switches Tare compensation via external button or PLC signal Front LED indicates operation status 3-way galvanic isolation between input, output and power supply

Temperatures

• Humidity
  • 10…90 %, no condensation
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
