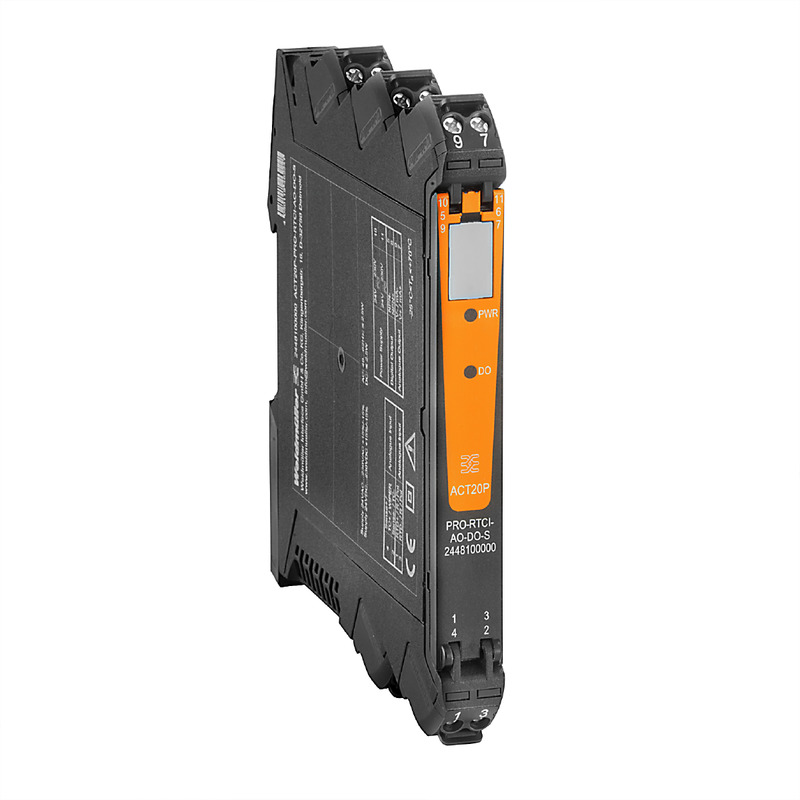

Weidmuller 2448100000

Approvals

• Approvals
  • EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-29
• eClass 9.0
  • 27-21-01-29
• eClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• ETIM 7.0
  • EC002919

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 113.7 mm
• Depth (inches)
  • 4.476 inch
• Height
  • 119.2 mm
• Height (inches)
  • 4.693 inch
• Net weight
  • 194 g
• Width
  • 12.5 mm
• Width (inches)
  • 0.492 inch

Display

• Display value
  • Configuration data and process data (input/output) in operation
• Type
  • Dot-matrix display with ticker text, green

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < ±0.1 % of span, ≤ 2 °C (PT100)
• Configuration
  • with push-buttons and display
• Power consumption
  • ≤ 2.6 W
• Rail
  • TS 35
• Step response time
  • 2- / 4- wire: 320 ms;, 3- wire / Poti: 640 ms
• Temperature coefficient
  • ≤ 0.02 % / °C, ≤ 200 ppm/K
• Voltage supply
  • 24…230 V DC ±15%, 24…230 V AC ±15% @48…62 Hz

Input

• Number of inputs
  • 1
• Potentiometer
  • 10…150 kΩ
• Resistance
  • 0…15 kΩ
• Sensor
  • PT100 / 2-/3-/4-wire, PT200, PT500, N50, N100, P 1K, N 1K, KT16, KT81, KT82, KT83, KT84, ST13, ST20
• Temperature input range
  • adjustible from -200…+850 °C

Insulation Coordination

• EMC standards
  • EN 61326-1
• Impulse withstand voltage
  • 5 kV (1.2/50 µs)
• Insulation voltage
  • 4 kVeff / 1 min.
• Pollution severity
  • 2
• Rated voltage
  • 600 V
• Surge voltage category
  • II

Output (Analogue)

• Load resistance current
  • ≤ 600 Ω
• Load resistance voltage
  • > 1 kΩ (60 VAC < Uin < 230 VAC), > 5 kΩ (24 VAC < Uin < 60 VAC)
• Output current
  • configurable, 0(4)...20 mA, -20…+20 mA, ± 10mA, upscale (23 mA), downscale (3,5 mA)
• Output voltage
  • configurable, 0(1)...5 V, 0(2)...10 V, downscale (0 V), upscale (11 V), -5…+5 V, -10...+10 V
• Signal output
  • direct or inverted
• Type (analogue output)
  • Voltage and current output (configurable), Active/passive

Output (Digital)

• Alarm function
  • configurable, Top and bottom limit values, window range, Short circuit at input, Alarm delay: 0...10 s, Hysteresis 5% / 10%
• Number of digital outputs
  • 1
• Rated switching current
  • 100 mA
• Rated switching voltage
  • 24 VDC ±30%
• Type
  • NPN-Transitor, Switching frequency 5 kHz

Product Information

• Product information
  • The universal, configurable resistance measuring transducer ACT20P-PRO-RTCI-AO-DOS converts 2- / 3- / 4-wire ohmic resistance and potentiometers into an active or passive standard current signal or an active voltage signal. For set point Limit Monitoring the device is equipped with an digital NPN Output. The universal power supply can be powerd up from 24Vuc...230Vuc. The device can be configured via the display. Features universal wide range supply universal configurability, LED- Display by touch key Active or passive signal output Digital NPN transistor output Operating status display via frontsided LED Galvanic 4-way isolation between Input, analogue, digital output and supply

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
