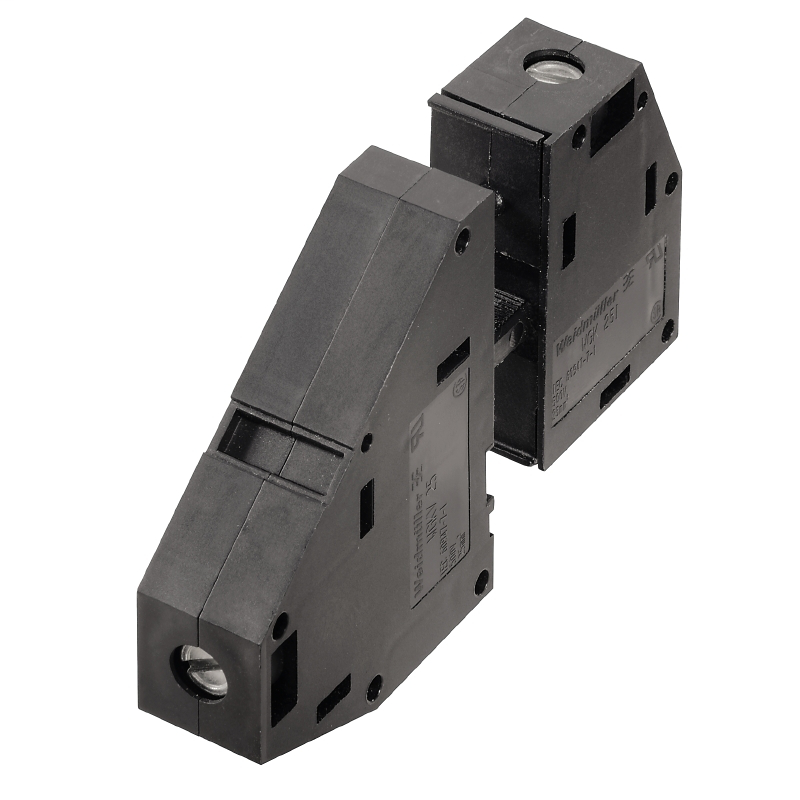

Weidmuller 2444810000

Approvals

• Approvals
  • cURus
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-34
• eClass 9.0
  • 27-14-11-34
• eClass 9.1
  • 27-14-11-34
• ETIM 6.0
  • EC001283
• ETIM 7.0
  • EC001283

Conductors Suitable For Connection

• Clamping range, max.
  • 35 mm²
• Clamping range, min.
  • 4 mm²
• Flexible, max. H05(07) V-K
  • 16 mm²
• Flexible, min. H05(07) V-K
  • 6 mm²
• Max. clamping range
  • 35 mm²
• Solid, max. H05(07) V-U
  • 16 mm²
• Solid, min. H05(07) V-U
  • 6 mm²
• Stranded, max. H07V-R
  • 35 mm²
• Stranded, min. H07V-R
  • 10 mm²
• Wire connection cross section AWG, max.
  • AWG 3
• Wire connection cross section AWG, min.
  • AWG 10
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 25 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 4 mm²

Dimensions And Weights

• Net weight
  • 67.224 g

Material Data

• Colour
  • Green/yellow
• Colour chart (similar)
  • Not specified
• Contact material
  • E-Cu
• Contact surface
  • tinned
• Insulating material
  • Wemid (PA)
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• Notes
  • Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request WGK: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V WGKV: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V WGK…VP: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 2.5 mm = 800 V; metal walls: 2.5 - 4 mm = 690 V; metal walls: 4 - 6 mm = 500 V Wire-end ferrules are mandatory for stranded wires with more than 19 strands.

Packing

• Packaging
  • Box
• VPE height
  • 59 mm
• VPE length
  • 299 mm
• VPE width
  • 137 mm

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 100 A
• Rated current (Use group C / CSA)
  • 100 A
• Rated voltage (Use group B / CSA)
  • 600 V
• Rated voltage (Use group C / CSA)
  • 600 V
• Wire cross-section, AWG, max.
  • AWG 3
• Wire cross-section, AWG, min.
  • AWG 10

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 101 A
• Rated current, min. number of poles (Tu=20°C)
  • 101 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 6 kV
• Rated voltage for surge voltage class / pollution degree III/3
  • 690 V
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 100 A
• Rated current (Use group C / UL 1059)
  • 100 A
• Rated voltage (Use group B / UL 1059)
  • 600 V
• Rated voltage (Use group C / UL 1059)
  • 600 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 3
• Wire cross-section, AWG, min.
  • AWG 10

System Parameters

• Clamping screw
  • M 6
• Conductor outlet direction
  • 90°/270°
• Fitted by customer
  • Yes
• Product family
  • OMNIMATE Power - series WGK
• Screwdriver blade
  • 1.2 x 6.5
• Stripping length
  • 18 mm
• Tightening torque, max.
  • 4.5 Nm
• Tightening torque, min.
  • 4 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Wire connection method
  • Screw connection
