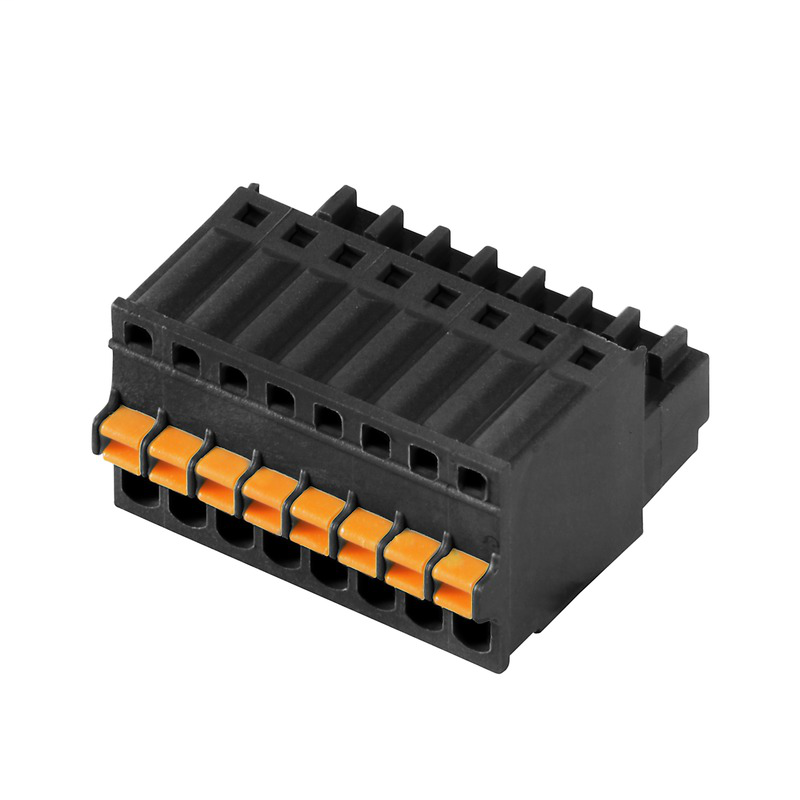

Weidmuller 2438860000

Approvals

• Approvals
  • cURus
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638

Conductors Suitable For Connection

• Clamping range, max.
  • 0.5 mm²
• Clamping range, min.
  • 0.08 mm²
• Flexible, max. H05(07) V-K
  • 0.5 mm²
• Flexible, min. H05(07) V-K
  • 0.08 mm²
• Max. clamping range
  • 0.5 mm²
• Reference text
  • The outside diameter of the plastic collar should not be larger than the pitch (P).
• Solid, max. H05(07) V-U
  • 0.5 mm²
• Solid, min. H05(07) V-U
  • 0.08 mm²
• Stranded, max. H07V-R
  • 0.5 mm²
• Stranded, min. H07V-R
  • 0.08 mm²
• Wire connection cross section AWG, max.
  • AWG 20
• Wire connection cross section AWG, min.
  • AWG 28
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 0.34 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.25 mm²

Dimensions And Weights

• Depth
  • 19.2 mm
• Depth (inches)
  • 0.756 inch
• Height
  • 11.75 mm
• Height (inches)
  • 0.463 inch
• Net weight
  • 1.22 g
• Width
  • 5.6 mm
• Width (inches)
  • 0.22 inch

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• Insulating material
  • PA
• Operating temperature, max.
  • 105 °C
• Operating temperature, min.
  • -40 °C
• Temperature range, installation, max.
  • 105 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Packing

• Packaging
  • Box
• VPE height
  • 0 m
• VPE length
  • 0 m
• VPE width
  • 0 m

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 5 A
• Rated voltage (Use group B / CSA)
  • 150 V
• Wire cross-section, AWG, max.
  • AWG 20
• Wire cross-section, AWG, min.
  • AWG 28

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 6 A
• Rated current, max. number of poles (Tu=40°C)
  • 6 A
• Rated current, min. number of poles (Tu=20°C)
  • 6 A
• Rated current, min. number of poles (Tu=40°C)
  • 6 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 80 V
• tested acc. to standard
  • IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 5 A
• Rated voltage (Use group B / UL 1059)
  • 150 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 20
• Wire cross-section, AWG, min.
  • AWG 28

System Parameters

• Conductor outlet direction
  • 180°
• L1 in inches
  • 0.984 inch
• L1 in mm
  • 2.5 mm
• Number of poles
  • 2
• Number of rows
  • 1
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.984 inch
• Pitch in mm (P)
  • 2.5 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Signal - series BL/SL 2.50
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 8 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Volume resistance
  • < 10 mΩ
• Wire connection method
  • PUSH IN, Tension-clamp connection
