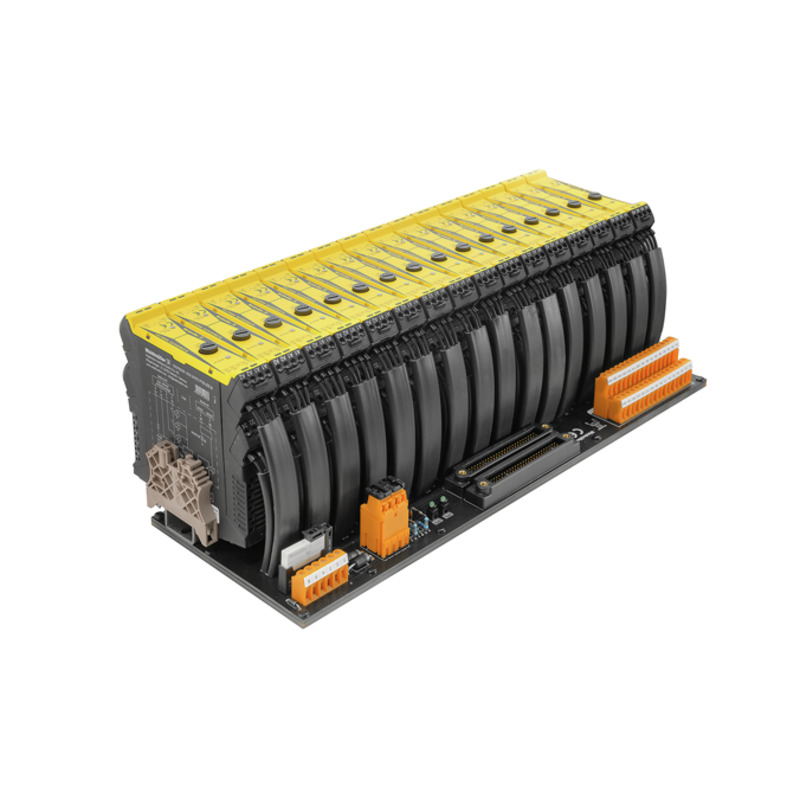

Weidmuller 2436230000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2 x AKB (50P)BKP-16DO-SDV541-V1-S
Weidmuller 2436230000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection on control side
- 2 x AKB (50P)
- Connection supply
- LP 5.08mm
- Connection to PLC
- Yokogawa ProSafe
- Connection to the card
- SDV541
- Number of poles (control side)
- 50-pole plug
Connection Field
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 2.5 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.2 mm²
- Max. wire cross-section, AWG
- AWG 14
- Min. wire cross-section, AWG
- AWG 26
- Solid, max. H05(07) V-U
- 2.5 mm²
- Solid, min. H05(07) V-U
- 0.2 mm²
- Stripping length
- 6 mm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Length
- 376 mm
- Length (inches)
- 14.803 inch
- Net weight
- 4,718.896 g
- Width
- 168 mm
- Width (inches)
- 6.614 inch
General Data
- Power supply fuse
- 2 A
Insulation Coordinates (En50178)
- Clearance input/input
- ≥ 0.3 mm
- Clearance input/output
- ≥ 5.5 mm
- Clearance output/output
- ≥ 5.5 mm
- Insulation test voltage
- 1.2 kVAC
- Overvoltage category input/input
- III
- Overvoltage category input/output
- III
- Overvoltage category output/output
- III
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 6 kV
- Rated input insulation voltage
- 50 V AC / 70 V DC
- Rated output insulation voltage
- < 300 V AC
Ratings Data Output
- Relay type
- SIL3
Supply Connection
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 0.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire cross-section, max. AWG
- AWG 26
- Wire cross-section, min. AWG
- AWG 12
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
