Description

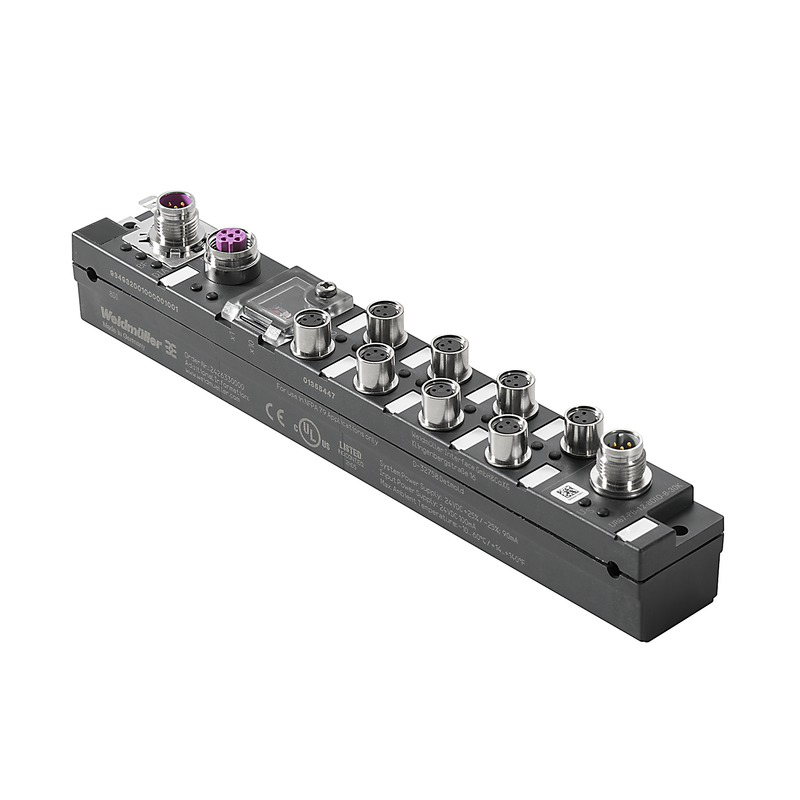

Automation Products - u-remote IP67, Profibus-DPUR67-PB-12-8DI-8-30K
Weidmuller 2426360000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-24-26-02
- eClass 9.0
- 27-24-26-02
- eClass 9.1
- 27-24-26-02
- ETIM 6.0
- EC001597
- ETIM 7.0
- EC001597
Connections
- Fieldbus (BUS-IN)
- 1x M12 plug 5-pole, B-coded
- Fieldbus (BUS-OUT)
- 1x M12 female 5-pole, B-coded
- I/O connections
- 8 x M8 socket 3-pole
- Supply voltage (AUX-IN)
- 1x M12 plug 5-pole
Digital Inputs
- Input current, high
- 2 mA to 15 mA in accordance with EN 61131-2 Type 1
- Input current, low
- < 15 mA in accordance with EN 61131-2 Type 1
- Input filter
- 1 ms
Dimensions And Weights
- Height
- 40.4 mm
- Height (inches)
- 1.591 inch
- Length
- 205.4 mm
- Length (inches)
- 8.087 inch
- Net weight
- 200 g
- Width
- 30 mm
- Width (inches)
- 1.181 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Certificate
- CE, cULus
- Housing main material
- PBT
- Protection degree
- IP67
- UL 94 flammability rating
- UL 94
Supply Voltage
- Limits
- 18 V DC ... 30 V DC
- Operating voltage
- 24 V
- Power consumption of module electronics
- 65 mA typical
Temperatures
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -10 °C
