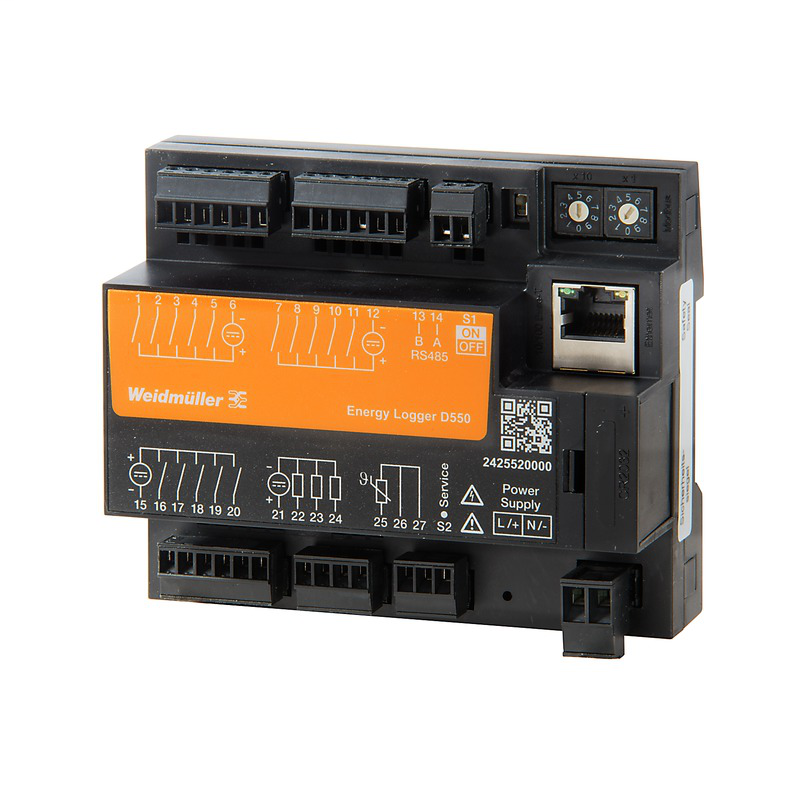

Weidmuller 2425520000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ENERGY LOGGER D550
Weidmuller 2425520000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E469563
Classifications
- eClass 10.0
- 27-14-23-30
- eClass 9.0
- 27-14-23-30
- eClass 9.1
- 27-21-03-01
- ETIM 6.0
- EC002301
- ETIM 7.0
- EC002301
- UNSPSC
- 39-12-15-35
Communication
- Interface
- RS485: 9,6 – 115,2 kbps, Ethernet
- Protocol
- Modbus RTU, Modbus-Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP
Dimensions And Weights
- Depth
- 46 mm
- Depth (inches)
- 1.811 inch
- Height
- 90 mm
- Height (inches)
- 3.543 inch
- Net weight
- 200 g
- Width
- 107.5 mm
- Width (inches)
- 4.232 inch
Inputs/Outputs
- Number of digital inputs
- 15
- Number of digital outputs
- 3
- Number of pulse outputs
- 3
- Temperature input
- Yes
Insulation Coordination
- Surge voltage category
- 300 V CAT III
Measurement Data Recording
- Memory; minimum and maximum values
- Yes
- Memory size
- 32 MB
- Software
- ecoExplorer go®
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E469563
Technical Data
- Operating-hours counter
- Yes
- Standards
- DIN EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 61000-4-11, IEC 61010-1, IEC 61010-2-030, EN 55011
- Surge voltage category
- 300 V CAT III
- Voltage supply
- 20 - 250 V AC, 20 - 300 V DC20 - 300 V DC
Temperatures
- Humidity at operating temperature
- 5…95 % RH
- Operating temperature
- -40 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
