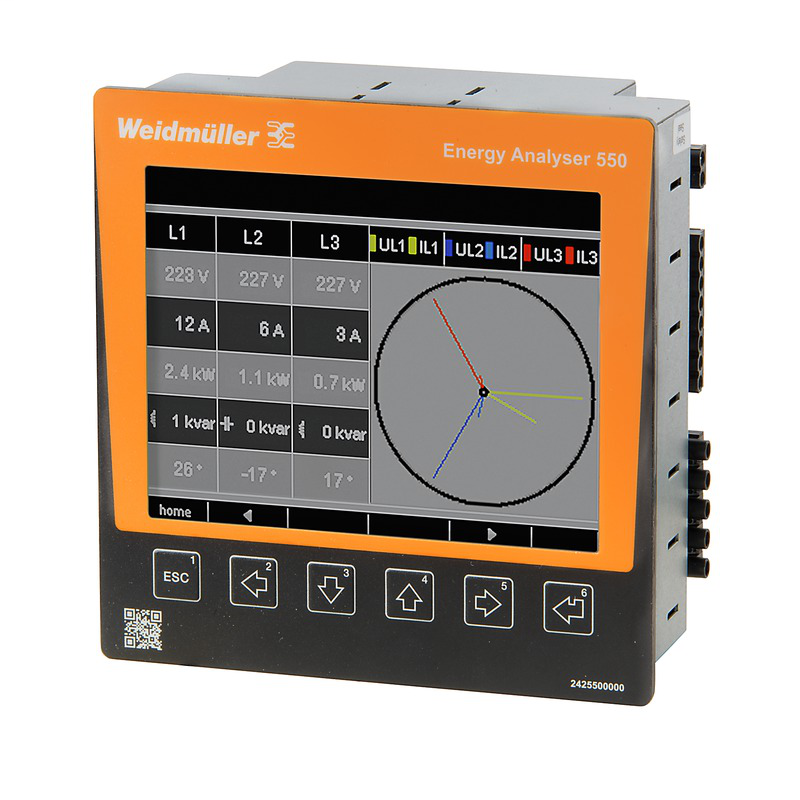

Weidmuller 2425500000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ENERGY ANALYSER 550
Weidmuller 2425500000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E469563
Classifications
- eClass 10.0
- 27-14-23-30
- eClass 9.0
- 27-14-23-30
- eClass 9.1
- 27-21-03-01
- ETIM 6.0
- EC002301
- ETIM 7.0
- EC002301
- UNSPSC
- 39-12-15-35
Communication
- Interface
- RS485: 9.6 – 921.6 kbps, Profibus DP, Ethernet, Web server/e-mail
- Protocol
- Modbus RTU, Modbus-Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP, Profibus DP V0, BACnet (optional)
Dimensions And Weights
- Depth
- 81 mm
- Depth (inches)
- 3.189 inch
- Height
- 144 mm
- Height (inches)
- 5.669 inch
- Net weight
- 1,080 g
- Width
- 144 mm
- Width (inches)
- 5.669 inch
Inputs/Outputs
- Number of digital inputs
- 2
- Number of digital outputs
- 2
- Number of pulse outputs
- 2
- Temperature input
- Yes
Insulation Coordination
- Surge voltage category
- 600 V CAT III
Measurement Data Recording
- Integrated logic
- Yes
- Memory; minimum and maximum values
- Yes
- Memory size
- 256 MB
- Min. memory recording interval
- 1 s
- Number of memory values
- 10,000 k
- Software
- ecoExplorer go®
- Update interval register
- 200 ms
Measuring Current Input
- Current-measuring channels
- 4 + 2
- Distortion factor THD-I in %
- Yes
- Harmonics, per order / current
- 1.-63.
- Measuring accuracy for current
- 0.2 %
- Rated current
- 1 / 5 A
- Residual current measuring
- Yes
Measuring Voltage Input
- Distortion factor THD-U in %
- Yes
- Four-wire system
- Yes
- Harmonics, per order / voltage
- 1.-63.
- Measurement range, voltage L-L, AC
- 720 V
- Measurement range, voltage L-N, AC
- 417 V
- Measuring accuracy for voltage
- 0.1 %
- Quadrants
- 4
- Three-wire system
- Yes
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E469563
Technical Data
- Bimetal function
- Yes
- Clock
- Yes
- Continuous measurements
- Yes
- Current-measuring channels
- 4 + 2
- Effective value from the period (50/60 Hz)
- 10 / 12
- Four-wire system
- Yes
- Measurement accuracy for active energy (kWh, …/5 A)
- Class 0.2S
- Measurement range, voltage L-L, AC
- 720 V
- Measurement range, voltage L-N, AC
- 417 V
- Measurement result per second
- 5
- Measuring accuracy for current
- 0.2 %
- Measuring accuracy for voltage
- 0.1 %
- Operating-hours counter
- Yes
- Quadrants
- 4
- Residual current measuring
- Yes
- Sampling frequency 50/60 Hz
- 20 kHz
- Standards
- DIN EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 61000-4-11, EN 55011, IEC 61010-1, IEC 61010-2-030, DIN EN 61000-4-8
- Surge voltage category
- 600 V CAT III
- Three-wire system
- Yes
- Voltage supply
- 95 - 240 V AC, 80 - 300 V DC
- Weekly time switch
- Yes
Temperatures
- Humidity at operating temperature
- 5…75 % RH
- Humidity at storage temperature
- 5…95 % RH
- Operating temperature
- -10 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -10 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
Voltage Quality Measurement
- Brief interruptions
- Yes
- Distortion factor THD-I in %
- Yes
- Distortion factor THD-U in %
- Yes
- Harmonics, per order / current
- 1.-63.
- Harmonics, per order / voltage
- 1.-63.
- Positive, negative and zero system
- Yes
- Sequence-of-events recorder function
- Yes
- Unbalanced
- Yes
