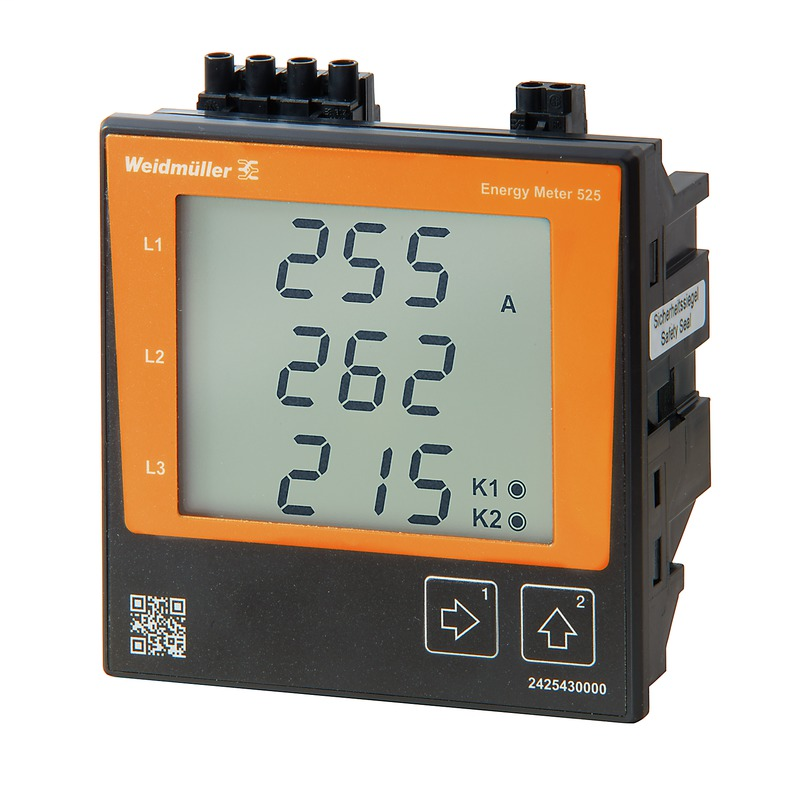

Weidmuller 2425430000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2425430000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- CE
- ROHS
- Conform
- UL File Number Search
- E469563
Classifications
- eClass 6.2
- 27-20-03-90
- eClass 7.1
- 27-37-18-01
- eClass 8.1
- 27-37-18-01
- eClass 9.0
- 27-37-18-01
- eClass 9.1
- 27-21-03-01
- ETIM 5.0
- EC001102
- ETIM 6.0
- EC002301
- UNSPSC
- 39-12-15-35
Communication/Protocols
- Interface
- Ethernet 10/100 Base T
- Protocol
- Modbus/TCP
Connection Data
- Clamping range, rated connection, max.
- 2.5 mm²
- Clamping range, rated connection, min.
- 0.2 mm²
- Stripping length, rated connection
- 7 mm
- Tightening torque, max.
- 0.5 Nm
- Tightening torque, min.
- 0.4 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Depth
- 48 mm
- Depth (inches)
- 1.89 inch
- Height
- 96 mm
- Height (inches)
- 3.78 inch
- Net weight
- 300 g
- Width
- 96 mm
- Width (inches)
- 3.78 inch
Display Plus Inputs/Outputs
- Display
- LCD with backlit display, 2 keys
General Data
- Supply voltage
- 20 - 250 V AC, 20 - 300 V DC
General Ordering Data
- GTIN (EAN)
- 4050118433500
- Order No.
- 2425430000
- Qty.
- 1 pc(s).
- Type
- ENERGY METER 525
- Version
- Energy meter, Class 0.5S, Supply voltage: 20 - 250 V AC, 20 - 300 V DC, Protocol: Modbus/TCP
Insulation Coordination
- Standards
- DIN EN 61010-1, EN 55011, EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, DIN EN 61000-4-8, EN 61000-4-11
Measuring Current Input
- Rated current
- 1 / 5 A
Measuring Voltage Input
- Measurement range, voltage L-L, AC (without converter)
- 18...520 Vrms
- Measurement range, voltage L-N, AC (without converter)
- 10...300 Vrms
Temperatures
- Humidity
- 0 - 75% RH
- Operating temperature
- -10 °C...55 °C
- Storage temperature
- -25 °C...70 °C
Voltage Quality Measurement
- Distortion factor THD-I in %
- Yes
- Distortion factor THD-U in %
- Yes
- Harmonics, per order / current
- 1.-40.
- Harmonics, per order / voltage
- 1.-40.
