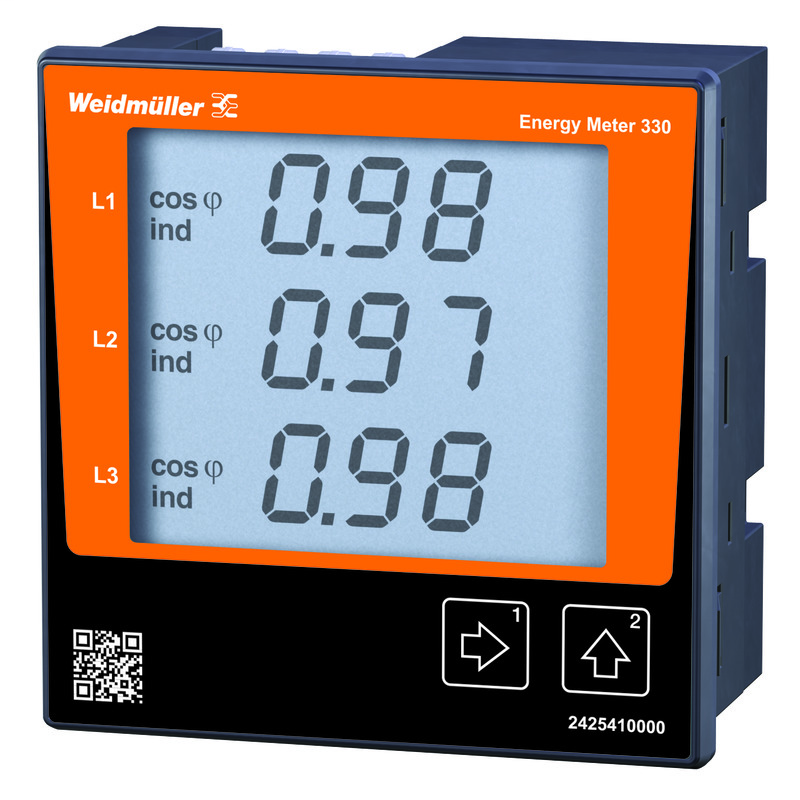

Weidmuller 2425410000

Approvals

• Approvals
  • CE
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-14-23-30
• eClass 9.0
  • 27-14-23-30
• eClass 9.1
  • 27-21-03-01
• ETIM 6.0
  • EC002301
• ETIM 7.0
  • EC002301
• UNSPSC
  • 39-12-15-35

Dimensions And Weights

• Depth
  • 48 mm
• Depth (inches)
  • 1.89 inch
• Height
  • 96 mm
• Height (inches)
  • 3.78 inch
• Net weight
  • 250 g
• Width
  • 96 mm
• Width (inches)
  • 3.78 inch

Inputs/Outputs

• Temperature input
  • No

Insulation Coordination

• EMC standards
  • DIN EN 61000-4-4, DIN EN 61000-4-2, DIN EN 61000-4-3, EN 55011, EN/IEC 61010-1
• Pollution severity
  • 2
• Surge voltage category
  • 300 V CAT III

Measurement Data Recording

• Integrated logic
  • No
• Memory; minimum and maximum values
  • Yes

Measuring Current Input

• Current-measuring channels
  • 3
• Distortion factor THD-I in %
  • No
• Measuring accuracy for current
  • 1 %
• Rated current
  • 1 / 5 A
• Residual current measuring
  • No

Measuring Voltage Input

• Distortion factor THD-U in %
  • No
• Four-wire system
  • Yes
• Measurement range, voltage L-L, AC
  • 442 V
• Measurement range, voltage L-N, AC
  • 255 V
• Measuring accuracy for voltage
  • 1 %
• Quadrants
  • 4
• Three-wire system
  • No

Technical Data

• Bimetal function
  • Yes
• Continuous measurements
  • No
• Current-measuring channels
  • 3
• Effective value from the period (50/60 Hz)
  • 1 / 1
• Four-wire system
  • Yes
• Measurement accuracy for active energy (kWh, …/5 A)
  • Class 2
• Measurement range, voltage L-L, AC
  • 442 V
• Measurement range, voltage L-N, AC
  • 255 V
• Measurement result per second
  • 1
• Measuring accuracy for current
  • 1 %
• Measuring accuracy for voltage
  • 1 %
• Operating-hours counter
  • Yes
• Quadrants
  • 4
• Residual current measuring
  • No
• Sampling frequency 50/60 Hz
  • 3 kHz
• Standards
  • DIN EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 61000-4-11, EN 55011, IEC 61010-1, IEC 61010-2-030
• Supply voltage
  • 230 V
• Surge voltage category
  • 300 V CAT III
• Three-wire system
  • No
• Voltage supply
  • 196...255 V AC

Temperatures

• Humidity at operating temperature
  • 15…95 % RH
• Operating temperature
  • -10 °C...55 °C
• Operating temperature, max.
  • 55 °C
• Operating temperature, min.
  • -10 °C
• Storage temperature
  • -25 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -25 °C

Voltage Quality Measurement

• Brief interruptions
  • No
• Current flicker intensity
  • No
• Distortion factor THD-I in %
  • No
• Distortion factor THD-U in %
  • No
• Positive, negative and zero system
  • No
• Sequence-of-events recorder function
  • No
• Unbalanced
  • No
