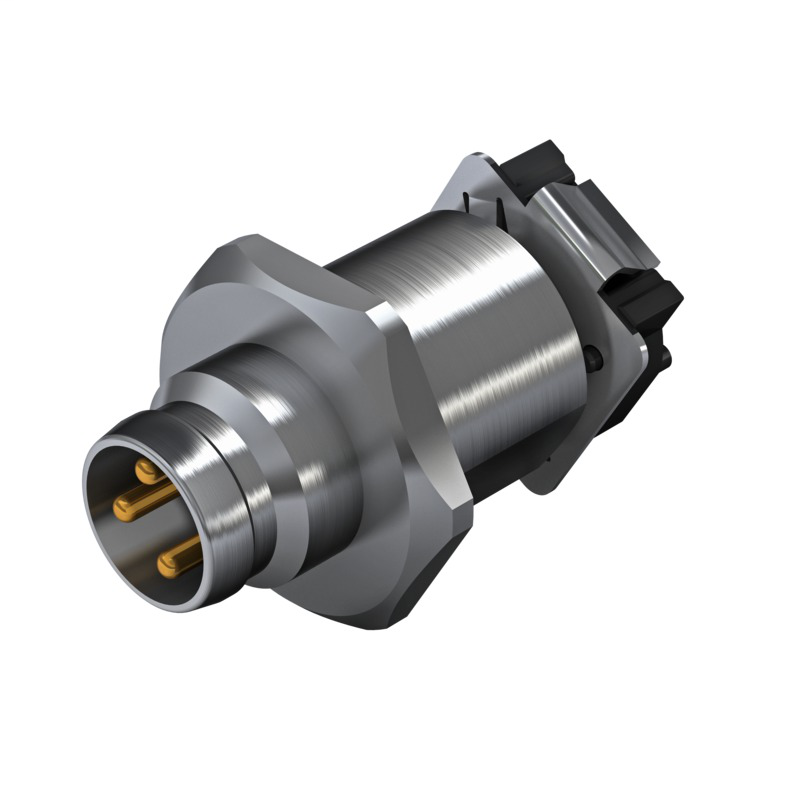

Weidmuller 2422560000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Built-in plugs, M8, Number of poles: 4, Front mountingSAIE-M8S-4S-F9SMT
Weidmuller 2422560000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-03-09
- eClass 9.0
- 27-44-03-09
- eClass 9.1
- 27-44-03-09
- ETIM 6.0
- EC002638
- ETIM 7.0
- EC002638
Dimensions And Weights
- Net weight
- 8.12 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Contact material
- CuZn
- Contact surface
- Au (Gold)
System Parameters
- Insulation strength
- 100 MΩ
- Number of poles
- 4
- Pin series quantity
- 1
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
Technical Data Of Pcb Plug-In Connector
- Coding
- M8 = none
- Connection thread
- M8
- Contact material
- CuZn
- Contact surface
- Au (Gold)
- Grouting material
- PUR
- Housing main material
- CuZn, nickel-plated
- Housings
- M8 pin
- Housing surface
- nickel-plated
- Insulation strength
- 100 MΩ
- Lock nut material
- Nickel-plated CuZn
- Material of the flange-mounted housing
- Nickel-plated CuZn
- Mounting height
- 9 mm
- Mounting thread
- M10
- Mounting torque range
- 0.8 Nm
- Number of poles
- 4
- Plugging cycles
- ≥ 100
- Pollution severity
- 3 (2 within the sealed area)
- Protection degree
- IP67
- Rated current
- 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
- Rated voltage
- 30 V
- Rated voltage (text)
- 60 V (3-pole) / 30 V (4-,5- and 8-pole)
- Seal material
- NBR
- Shield connection
- Yes
- Temperature range
- -30…80 °C
- Tightening torque
- M8: 0.5 Nm
- Type of mounting
- Front mounting
