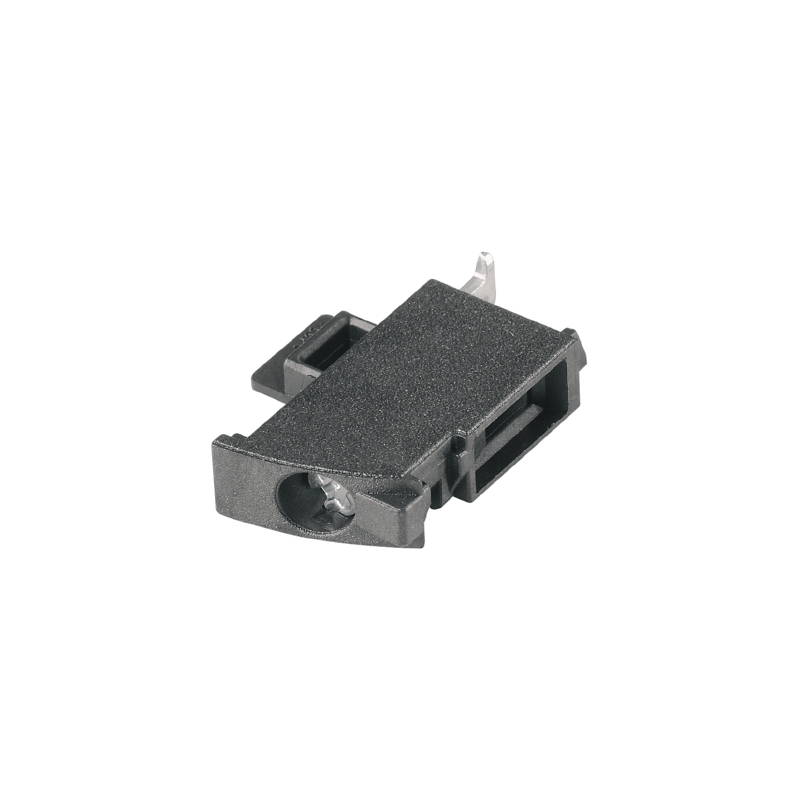

Weidmuller 2418580000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Printed circuit board terminals, Connection element, left, block assembly, closed side, THT/THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, TapeLHZ-SMT L 1.5SN BK RL
Weidmuller 2418580000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-44-04-01
- eClass 9.0
- 27-44-04-01
- eClass 9.1
- 27-44-04-01
- ETIM 6.0
- EC002643
- ETIM 7.0
- EC002643
Dimensions And Weights
- Height
- 16.9 mm
- Height (inches)
- 0.665 inch
- Length
- 23.5 mm
- Length (inches)
- 0.925 inch
- Net weight
- 3.32 g
- Width
- 6 mm
- Width (inches)
- 0.236 inch
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Contact surface
- tinned
- Insulating material
- LCP
- Insulating material group
- IIIa
- Insulation strength
- ≥ 108 Ω
- Max. relative humidity during storage
- 80 %
- Moisture Level (MSL)
- 1
- Operating temperature, max.
- 120 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 120 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-0
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 13 A
- Rated current, max. number of poles (Tu=40°C)
- 13 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
- Rated voltage for surge voltage class / pollution degree II/2
- 500 V
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
- tested acc. to standard
- IEC 60664-1, IEC 61984
System Characteristics
- Contact to terminal rail
- No
- Number of connections
- 1
- PCB thickness
- 0.8 mm
- Protection degree
- IP20
- Solder pin length (l)
- 1.5 mm
- Type of connection
- Clamping yoke connection
- Type of contact to PCB
- Reflow
- Version
- Connection element, left
