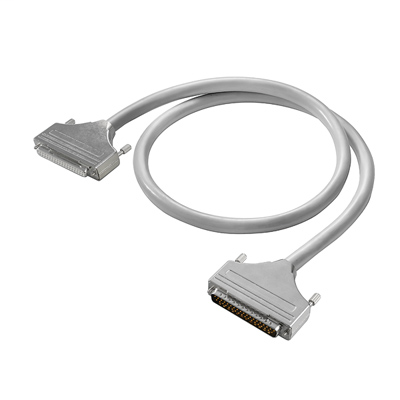

Weidmuller 2094770010
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2094770010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 6.2
- 27-24-92-05
- eClass 9.1
- 27-24-22-20
- ETIM 6.0
- EC000237
Dimensions And Weights
- Net weight
- 347 g
Electrical Data
- High voltage test
- 1 KV/1s
- Permissible current strength per path, max.
- 1 A
- Rated voltage (text)
- ≤ 60 Vdc ≤ 25 Vac
- Resistance
- ≤ 150 mΩ/m
- Total current, max.
- 3 A
General Data
- Cable
- Cable LiYCY
- Cable length
- 1 m
- Connector PLC side
- SUB-D HD male 62P
- Interface connector
- SUB-D HD male 62P
- Material
- PVC
- Number of poles, min.
- 62 poles
- Outer diameter
- 12,5 ± 2 mm
- Wire cross-section
- 0.14 mm²
General Ordering Data
- GTIN (EAN)
- 4032248260904
- Order No.
- 2094770010
- Qty.
- 1 pc(s).
- Type
- PAC-HD62M-HD62M-V0-1M
Product Information
- Descriptive text ordering data
- The last 3 digits of the cable code indicate its length. For example, if the code ends in 100, the cable is 10 m long.
Temperatures
- Operating temperature
- -10...50 °C
- Storage temperature
- -10...60 °C
