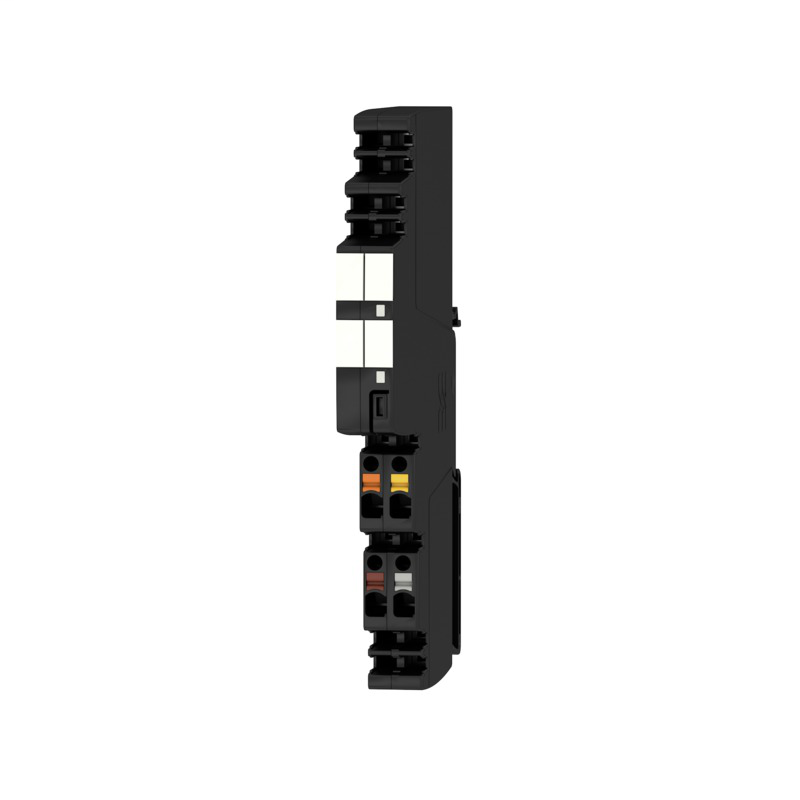

Weidmuller 2083360000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Control module, 24 V DCAMG CM EX
Weidmuller 2083360000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, LLOYDSREG, RINA, TUEV
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 10.0
- 27-37-10-16
- eClass 9.0
- 27-37-10-16
- eClass 9.1
- 27-37-10-16
- ETIM 6.0
- EC002057
- ETIM 7.0
- EC002057
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Number of terminals
- 2 (Reset / ON)
- Screwdriver blade
- 0.6 x 3.5
- Wire connection cross section, flexible (input), max.
- 2.5 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (I< / Alarm)
- Screwdriver blade
- 0.6 x 3.5
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 2.5 mm²
Dimensions And Weights
- Depth
- 96.5 mm
- Depth (inches)
- 3.799 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 56 g
- Width
- 12.2 mm
- Width (inches)
- 0.48 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Conformal coating
- Yes
- Control inputs
- ON/ OFF, Reset
- Operating temperature
- -25 °C...55 °C
- Power loss, idling
- 336 mW
- Power loss, nominal load
- 452 mW
- Protection degree
- IP20
- Relay to activate the output
- No
- Surge protection input, output, bus
- Suppressor diode
- Surge voltage category
- III
Input
- Current consumption (full load)
- 225 mA
- Current consumption (idle)
- 25 mA
- DC input voltage range
- 18…30 V DC
- Input fuse (internal)
- No
- max. admissible residual ripple at the input
- 100 mVpp
- Rated input voltage
- 24 V DC
- Surge protection
- Suppressor diode
Insulation Coordination
- Surge voltage category
- III
Output
- Connection system
- PUSH IN
- Surge protection
- Suppressor diode
Probability Of Failure
- MTTF
- 410 Years
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- DEMKO17ATEX1870X
- Certificate no. (cULus)
- E258476
- Certificate No. (IECEX)
- IECEXULD17.0018X
Signalling
- LED green
- Operation (failure-free), Early warning: I Out > 90% I Rated (flashing)
- Red LED
- Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
- Transistor output, positive-switching
- Pre-warning, Alarm
Temperatures
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
