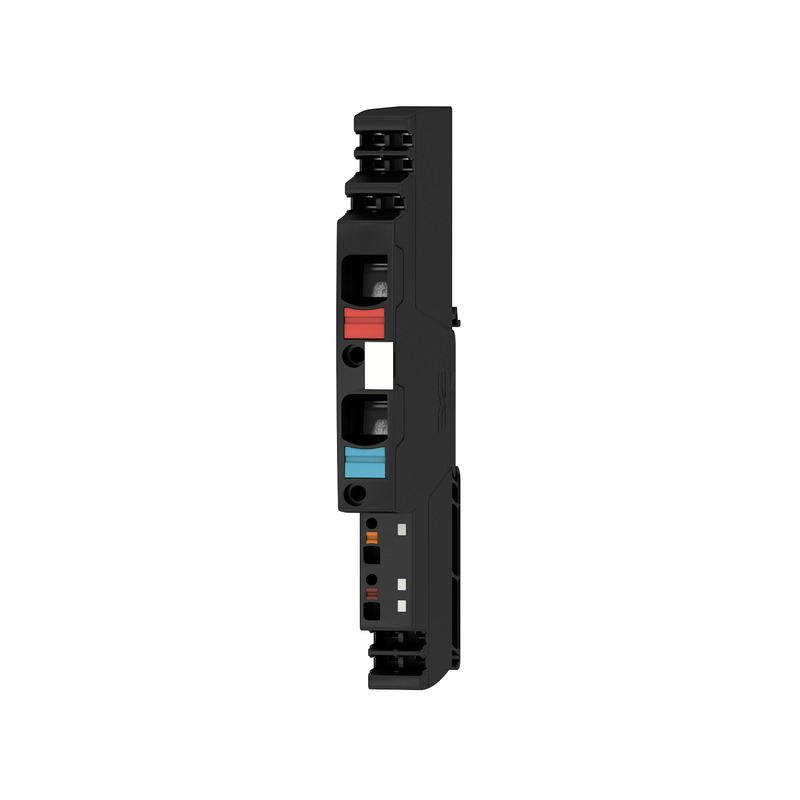

Weidmuller 2081880000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Supply module, 24 V DCAMG FIM-C
Weidmuller 2081880000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, TUEV
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 18
- Conductor cross-section, flexible , min.
- 0.75 mm²
- Conductor cross-section, rigid , max.
- 10 mm²
- Conductor cross-section, rigid , min.
- 0.75 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (+,−)
- Screwdriver blade
- 1.2 x 6.5
- Wire connection cross section, flexible (input), max.
- 16 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , max.
- 1.5 mm²
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , max.
- 1.5 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (I< / Alarm)
- Screwdriver blade
- 0.4 x 2.5
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 1.5 mm²
Dimensions And Weights
- Depth
- 96.5 mm
- Depth (inches)
- 3.799 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 78 g
- Width
- 12.2 mm
- Width (inches)
- 0.48 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Conformal coating
- No
- Control inputs
- Reset
- Monitoring function
- Yes
- Operating temperature
- -25 °C...55 °C
- Power loss, idling
- 384 mW
- Power loss, nominal load
- 500 mW
- Protection degree
- IP20
- Surge protection input, bus
- Suppressor diode
- Surge protection input, output, bus
- Suppressor diode
- Surge voltage category
- III
Input
- Connection system
- PUSH IN
- Current consumption (full load)
- 120 mA
- Current consumption (idle)
- 20 mA
- DC input voltage range
- 18…30 V DC
- Input fuse (internal)
- No
- max. admissible residual ripple at the input
- 100 mVpp
- Rated input voltage
- 24 V DC
Insulation Coordination
- Surge voltage category
- III
Output
- Connection system
- PUSH IN
Probability Of Failure
- MTTF
- 500 Years
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
Signalling
- LED green
- Operating voltage OK
- Red LED
- Alarm
- Transistor output, positive-switching
- Alarm
- Yellow LED
- External reset is signalled, Alarm is signalled
Temperatures
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
