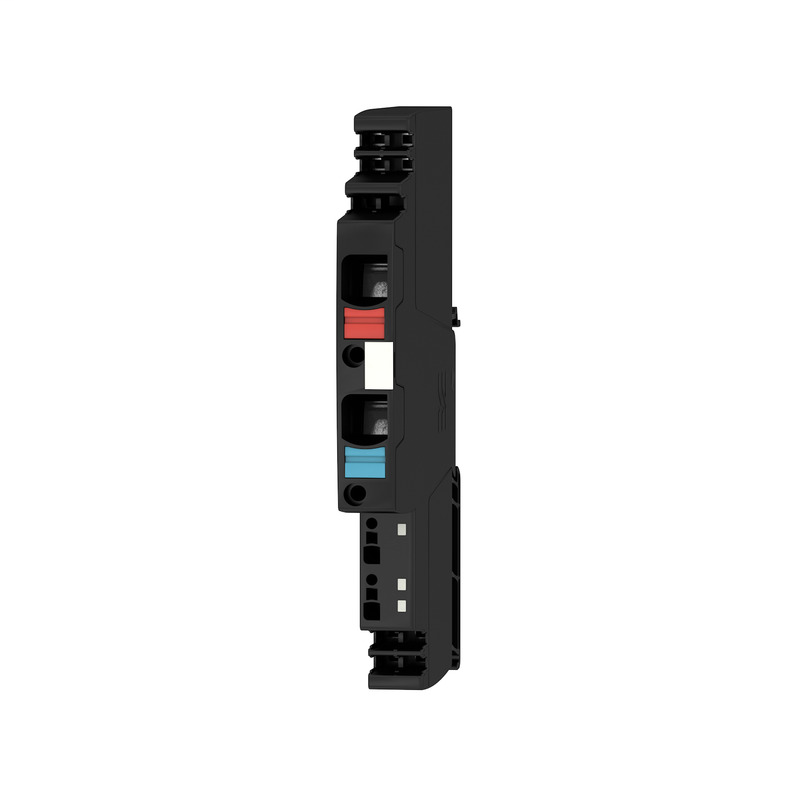

Weidmuller 2081870000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Supply module, 24 V DCAMG FIM-0
Weidmuller 2081870000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, TUEV
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 18
- Conductor cross-section, flexible , min.
- 0.75 mm²
- Conductor cross-section, rigid , max.
- 10 mm²
- Conductor cross-section, rigid , min.
- 0.75 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (+,−)
- Screwdriver blade
- 1.2 x 6.5
- Wire connection cross section, flexible (input), max.
- 16 mm²
Connection Data (Output)
- Connection system
- PUSH IN
Dimensions And Weights
- Depth
- 96.5 mm
- Depth (inches)
- 3.799 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 0.14 g
- Width
- 12.2 mm
- Width (inches)
- 0.48 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Conformal coating
- No
- Control inputs
- No
- Monitoring function
- No
- Operating temperature
- -25 °C...55 °C
- Protection degree
- IP20
- Surge voltage category
- III
Input
- Connection system
- PUSH IN
- DC input voltage range
- 18…30 V DC
- Input fuse (internal)
- No
- max. admissible residual ripple at the input
- 100 mVpp
- Rated input voltage
- 24 V DC
Insulation Coordination
- Surge voltage category
- III
Output
- Connection system
- PUSH IN
Probability Of Failure
- MTTF
- 50,000 Years
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
Temperatures
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
