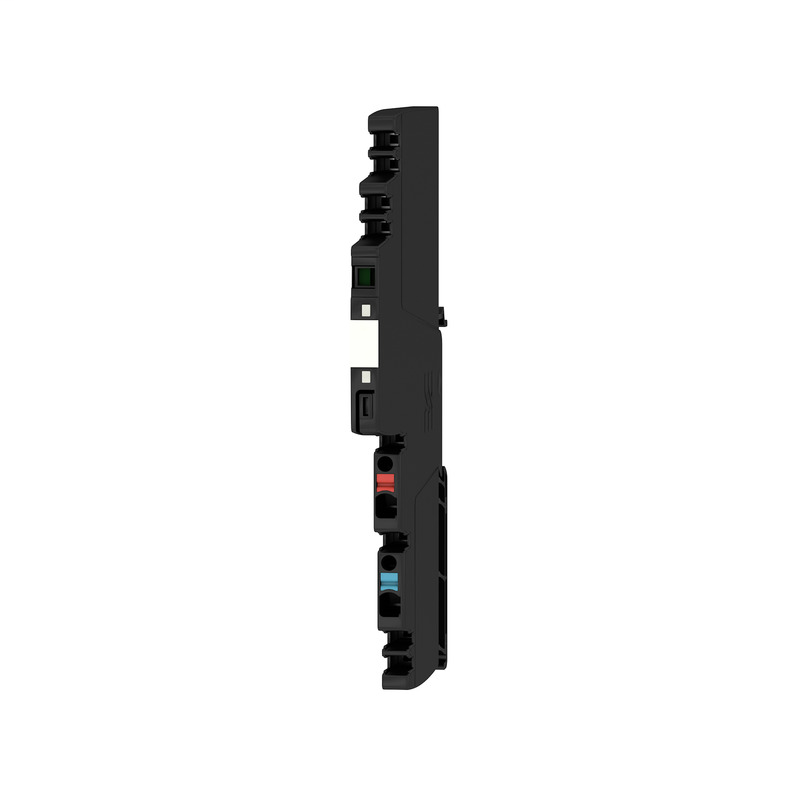

Weidmuller 2080480000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Electronic load monitoring, 2.00 A, 24 V DCAMG ELM-2F
Weidmuller 2080480000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC, TUEV
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 10.0
- 27-37-10-16
- eClass 9.0
- 27-37-10-16
- eClass 9.1
- 27-37-10-16
- ETIM 6.0
- EC002057
- ETIM 7.0
- EC002057
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Connection system
- PUSH IN
- Number of terminals
- 2 (+ / -)
- Screwdriver blade
- 0.6 x 3.5
Dimensions And Weights
- Depth
- 96.5 mm
- Depth (inches)
- 3.799 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 40 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Conformal coating
- No
- Function key
- Activation time < 3s, Reset, ON
- Operating temperature
- -25 °C...55 °C
- Power loss, idling
- 415 mW
- Power loss, nominal load
- 565 mW
- Protection degree
- IP20
- Relay to activate the output
- No
- Surge protection input, output, bus
- Suppressor diode
- Surge voltage category
- III
Input
- Current consumption (full load)
- IOUT +30 mA
- Current consumption (idle)
- 25 mA
- DC input voltage range
- 18…30 V DC
- Input fuse (internal)
- Yes
- max. admissible residual ripple at the input
- 100 mVpp
- Rated input voltage
- 24 V DC
- Surge protection
- Suppressor diode
Insulation Coordination
- Surge voltage category
- III
Output
- adjustable rated current
- No
- Capacitive load
- 10,000 µF
- Connection system
- PUSH IN
- Rated current
- 2 A
- Surge protection
- Suppressor diode
- Switch-on delay
- 1 s
- Triggering characteristic
- see characteristic curve
Probability Of Failure
- MTTF
- 350 Years
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
Signalling
- LED green
- Operation (failure-free)
- Red LED
- Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
Temperatures
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
