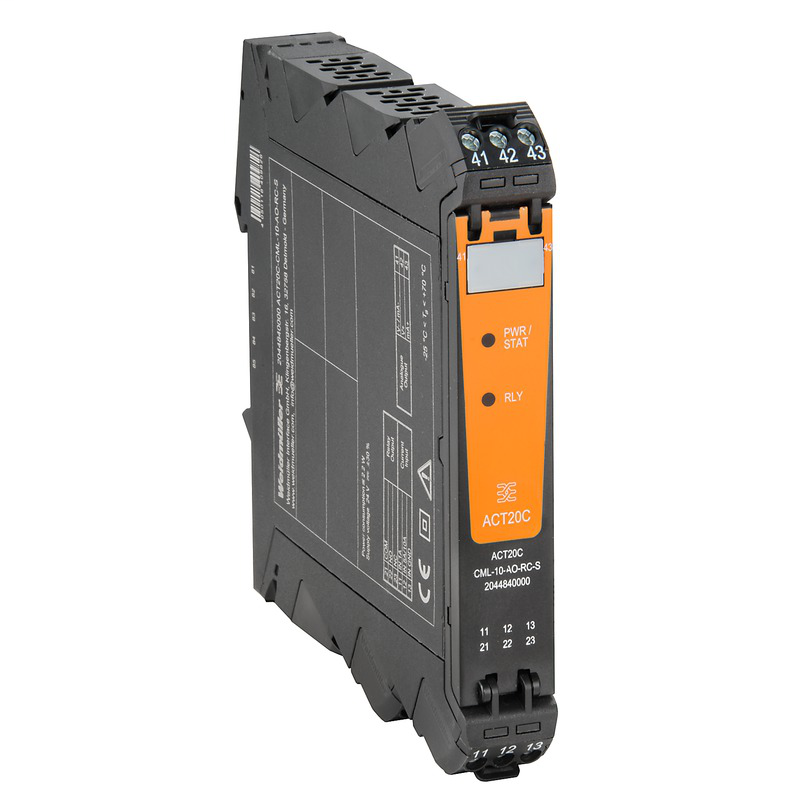

Weidmuller 2044840000

Approvals

• Approvals
  • CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-23
• eClass 9.0
  • 27-21-01-23
• eClass 9.1
  • 27-21-01-23
• ETIM 6.0
  • EC002475
• ETIM 7.0
  • EC002475

Communication

• Configuration
  • for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis, via gateway (ACT20C-GTW-100-MTCP-S), With FDT/DTM software

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 3.5 Lb In
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 117.2 mm
• Height (inches)
  • 4.614 inch
• Net weight
  • 134 g
• Width
  • 17.5 mm
• Width (inches)
  • 0.689 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • ≤ ±0.3 % @ 1 A ⁄ 5 A, ≤ ±0.6 % @ 10 A
• Configuration
  • for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis, via gateway (ACT20C-GTW-100-MTCP-S), With FDT/DTM software
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Power consumption, max.
  • 2.2 W
• Rail
  • TS 35
• Step response time
  • ≤ 300 ms (RMS), ≤ 60 ms (AA)
• Temperature coefficient
  • ≤ ±100 ppm⁄K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C
• Voltage supply
  • 24 V DC ± 30 %

Input

• Input frequency
  • AC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average)
• Input measurement range
  • configurable, 0…1/5/10 A AC (RMS) or DC
• Input signal
  • Power cable can be connected to the terminals

Insulation Coordination

• EMC standards
  • IEC 61326-1, IEC 61010-2-201
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Impulse withstand voltage
  • 6 kV (1.2/50 µs)
• Pollution severity
  • 2
• Rated voltage
  • 300 V ACrms
• Surge voltage category
  • III

Output (Analogue)

• Load resistance current
  • ≤ 600 Ω
• Load resistance voltage
  • ≥ 10 kΩ
• Output current
  • Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
• Output voltage
  • Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
• Type (analogue output)
  • Voltage and current output (configurable)

Output (Digital)

• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 24 V
• Rated switching current
  • 2 A
• Type
  • Relay, 1 CO contact, Process alarms (4x) with hysteresis, with alarm delay (configurable) 0…180 s

Probability Of Failure

• MTTF
  • 130 Years

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Humidity
  • 5...95 %, no condensation
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
