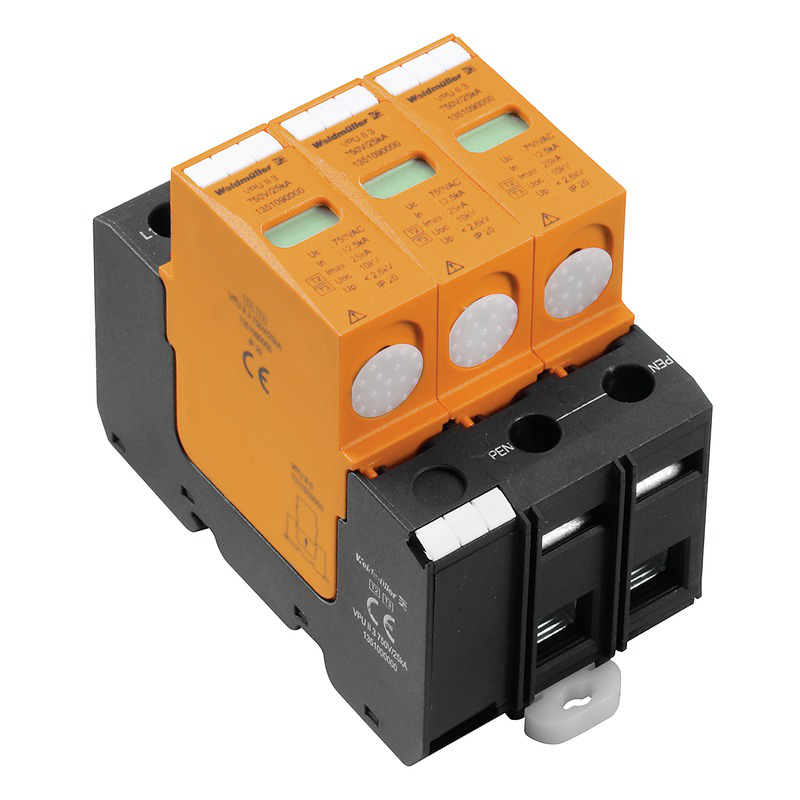

Weidmuller 2025600000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge voltage arrester, Low voltage, without telecomm. contact, TN, IT, TT -> L-PE(U0≤ 230 V)VPU II 3WDA L-G 480V
Weidmuller 2025600000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 50 mm²
- Connection cross-section, stranded, min.
- 4 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 3 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 0
- Wire connection cross section AWG, min.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 25 mm²
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 4 mm²
Dimensions And Weights
- Depth
- 69 mm
- Depth (inches)
- 2.717 inch
- Height
- 94 mm
- Height (inches)
- 3.701 inch
- Mounting dimension - height
- 75 mm
- Net weight
- 416 g
- Width
- 54 mm
- Width (inches)
- 2.126 inch
General Data
- Colour
- black, orange
- Design
- Installation housing; 3TE, Insta IP 20
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20
- Rail
- TS 35
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- without telecomm. contact
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Discharge current I
- 20 kA
- Follow-on current extinguishing capability I
- Not available due for technical reasons
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- 125 A gL > (if back up fuse > 125 A)
- Low voltage network
- TN, IT, TT -> L-PE(U0≤ 230 V)
- Max. continuous voltage, Uc (AC)
- 550 V
- Number of poles
- 3
- Protection level U
- ≤ 2,4 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type II
- Requirements class, acc. to EN 61643-11
- T2
- Response time
- ≤ 25 ns
- Short-circuit current rating I
- 25 kA
- Signalling contact
- No
- Voltage type
- AC
Rated Data Ul
- Category
- SPD TYPE 1CA/2CA
- Certificate No. (cURus)
- E354261
- Continuous voltage U
- 550 V
- I
- 20 kA
- MCOV (L/N-PE)
- 550 Vac
- Rated Voltage U
- 480 V
- SCCR
- 200 kA
- Test Voltage 39.1 (UL 1449)
- 480 V
- VPR (L/N-PE)
- 1,800 V
Ratings Iecex/Atex/Cul
- cUL certificate
- UL 1449 ED.4 Certificate
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
