Weidmuller 2010680000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

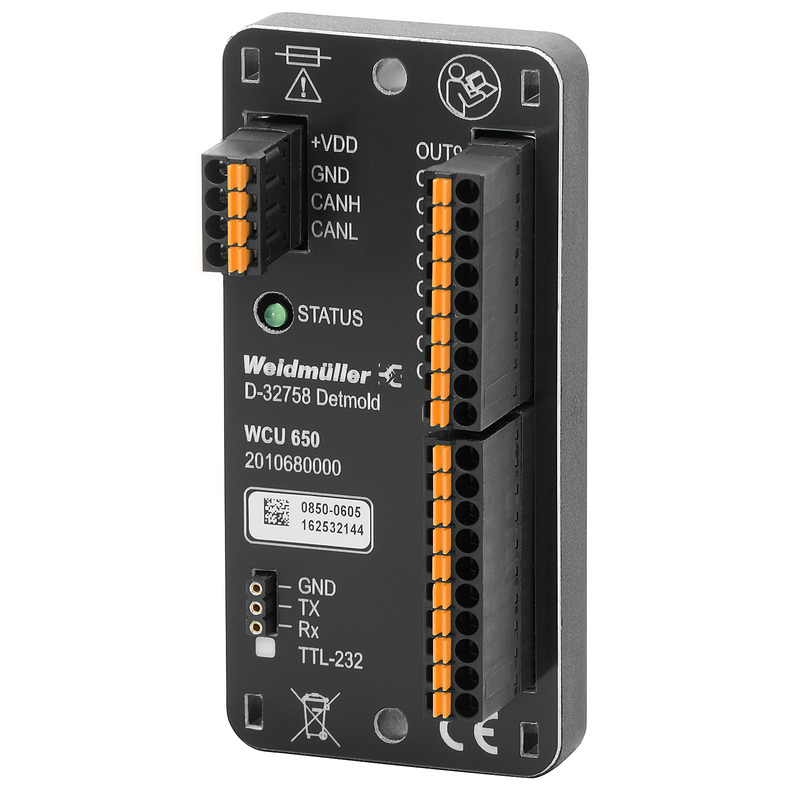

graphically programmable logic module, CAN interface, Mounting footLOGIC UNIT WCU 650
Weidmuller 2010680000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Analogue Inputs
- Input resistance (R
- > 11 kΩ
- Input voltage (U
- 0...30 V DC
- Number
- 6
- Pin assignment
- IN 1, IN 2, IN 3, IN 4, IN 5, IN 6
- Precision
- ± 2% (0.25 V DC)
- Resolution
- 12-bit
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Can Interface
- Baud rate
- 100 kbit, 125 kbit, 250 kbit, 500 kbit
- Bus system
- ISO 11898-2, CAN 2.0B, CAN 2.0A
- Identifier
- 11bit / 29 bit
Classifications
- eClass 10.0
- 27-24-22-16
- eClass 9.0
- 27-24-22-16
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC001417
- ETIM 7.0
- EC001417
Digital Inputs
- Input frequency (f
- ≤ 1 kHz
- Input resistance (R
- > 30 kΩ
- Input voltage (U
- 0...30 V DC
- Number
- 4
- Pin assignment
- IN 7, IN 8, IN 9, IN 10
- Pulse length
- ≥ 1 ms
- Threshold voltage Off (U
- ≤ 2 V DC
- Threshold voltage On (U
- ≥ 4 V DC
Digital Outputs
- Number
- 8
- Output current per channel (I
- ≤ 1.5 A
- Output voltage (U
- +VDD - 0.45 V
- Pin assignment
- OUT 1, OUT 2, OUT 3, OUT 4, OUT 5, OUT 6, OUT 7, OUT 8
- Switching frequency (f
- 0...100 Hz
- Total output current (I
- ≤ 6 A
Dimensions And Weights
- Depth
- 30 mm
- Depth (inches)
- 1.181 inch
- Height
- 93 mm
- Height (inches)
- 3.661 inch
- Net weight
- 102 g
- Width
- 45 mm
- Width (inches)
- 1.772 inch
Emc / Shock / Vibration
- EMC interference resistance
- EN 61000-6-2:2005
- Shock resistance
- min. 100 m/s² (10 g)
- Vibration resistance
- min. 50 m/s² (5 g) @ 10…150 Hz
General Data
- Air pressure
- 500...1500 hPa
- Current consumption
- nominal 15 mA @ 32 V DC (dependent on the configuration)
- Encapsulation compound
- Polyurethane (PU)
- Heat dissipation
- < 2.5 W (at full load)
- Input fuse
- max. 8 A (external)
- Interface
- TTL 232
- Operating voltage
- +VDD: 7…32 V DC
- Optical function display
- LED
- Potential isolation
- no (common GND)
- Protection degree
- IP20
- Reverse polarity protection
- yes (combined with external fuse)
- Security
- Watchdog, Fail safe oscillator 16 MHz, Brown out detection, Power up timer
- Type of connection
- Plug-in spring-type terminals (0.25 - 1.5 mm²)
- Wire connection method
- PUSH IN
Pwm Output
- Note
- Can also be used as a digital output (ground-switching)
- Number of
- 1
- Output current per channel (I
- ≤ 1 A
- Output voltage (U
- ≤ GND + 0,25 V
- Pin assignment
- OUT 9
- Switching frequency (f
- 1...10 kHz
- Type
- Ground switching
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
