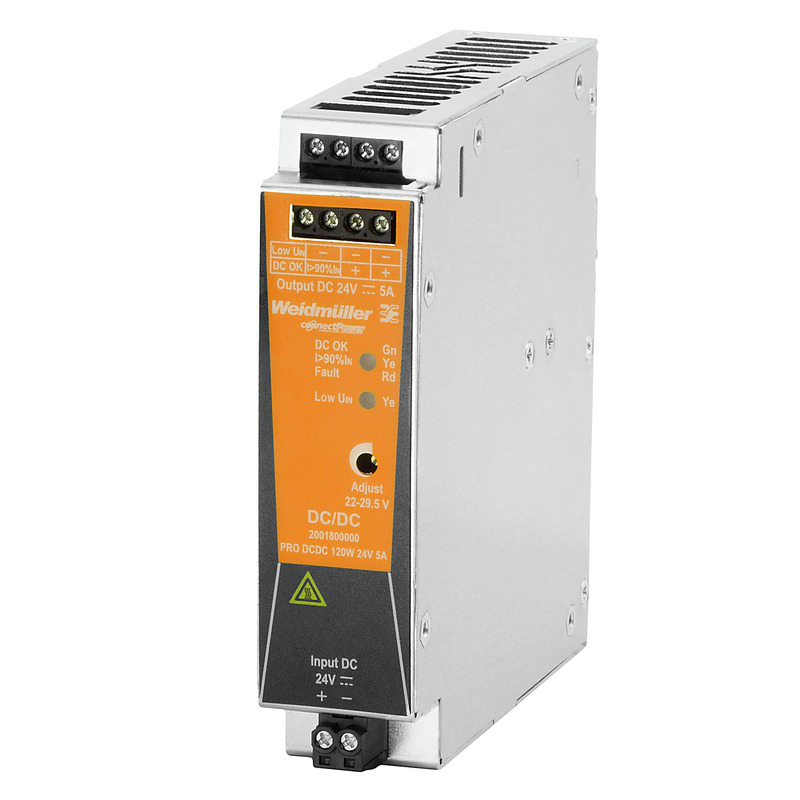

Weidmuller 2001800000

Approvals

• Approvals
  • ABS, BURVER, CULUS, CULUSEX, DNV GL, LLOYDSREG, RINA
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 12 AWG
• Conductor cross-section, AWG/kcmil , min.
  • 30 AWG
• Conductor cross-section, flexible , min.
  • 0.2 mm²
• Conductor cross-section, rigid , max.
  • 4 mm²
• Conductor cross-section, rigid , min.
  • 0.2 mm²
• Connection system
  • Screw connection: pluggable
• Number of terminals
  • 2 for (+, -)
• Reverse polarity protection
  • Yes
• Tightening torque, max.
  • 0.5 Nm
• Tightening torque, min.
  • 0.4 Nm
• Wire connection cross section, flexible (input), max.
  • 4 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 14 AWG
• Conductor cross-section, AWG/kcmil , min.
  • 24 AWG
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.2 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 0.2 mm²
• Number of terminals
  • 8 (+ / - / signal)
• Tightening torque, max.
  • 0.5 Nm
• Tightening torque, min.
  • 0.4 Nm

Dimensions And Weights

• Depth
  • 120 mm
• Depth (inches)
  • 4.724 inch
• Height
  • 130 mm
• Height (inches)
  • 5.118 inch
• Net weight
  • 774 g
• Width
  • 32 mm
• Width (inches)
  • 1.26 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-3 (HF field)
• Limiting of mains voltage harmonic currents
  • According to EN 61000-3-2
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 30 g in all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g (15 Hz…150 Hz)

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• AC failure bridging time @ I
  • > 10 ms @ 24 V DC
• Clip-in foot
  • metal
• Current limiting
  • 150% Iout
• Degree of efficiency
  • Typ.: 92 %
• Housing version
  • Metal, corrosion resistant
• Humidity
  • 5...95 %, no condensation
• Max. perm. air humidity (operational)
  • 5 %…95 % RH
• Mounting position, installation notice
  • Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between., 50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance
• Operating temperature
  • -25 °C...70 °C
• Power loss, idling
  • 2 W
• Power loss, nominal load
  • 11 W
• Protection against over-heating
  • Yes
• Protection against reverse voltages from the load
  • 33…34 V DC
• Protection degree
  • IP20
• Protective circuit
  • Overtemperature, Short-circuit, Inverse voltage
• Short-circuit protection
  • Yes
• Start-up
  • ≥ -40 °C
• Surge voltage category
  • III

Input

• Connection system
  • Screw connection: pluggable
• DC input voltage range
  • 14...32 V (during operation), 18...32 V (commissioning)
• Input fuse (internal)
  • Yes
• Inrush current
  • Max. 10 A
• Inrush Current Limitation
  • Yes
• Rated input voltage
  • 24 V DC
• Recommended back-up fuse
  • 10 A, Char. B circuit breaker, 10 A, Char. C circuit breaker

Insulation Coordination

• Humidity at operating temperature
  • 5...95 %, no condensation
• Insulation voltage input / earth
  • 1.5 kV
• Insulation voltage, input/output
  • 1.5 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • III, with no ground connection, for SELV
• Surge voltage category
  • III

Output

• Capacitive load
  • unrestricted
• Continous output current @ U
  • 5 A @ 40 °C, 6 A @ 45°C, 3,75 A @ 70°C
• DCL - peak load reserve
  • 150 % (5 s); 200 % (200 ms); 300 % (100 ms); 400 % (50 ms); 600 % (20 ms)
• Output current
  • 5 A
• Output power
  • 120 W
• Output voltage
  • 22.5...29.5 V (adjustable via potentiometer on front)
• Overload protection
  • Yes
• Parallel connection option
  • yes, max. 5 (without diode module)
• Protection against inverse voltage
  • Yes
• Ramp-up time
  • ≤ 9 ms (Uout: 10%...90%)
• Rated output voltage
  • 24 V DC ± 1 %
• Reserve capacity @ U
  • 600% IN for 16 ms
• Residual ripple, breaking spikes
  • max. 20 mVpp @ 24 VDC, IN

Probability Of Failure

• MTBF
  • 1,250,000 h

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• Transistor output, positive-switching
  • DC OK: 20 mA max., short-circuit-proof, I > 90%: 20 mA max., short-circuit-proof, Low UIN: 20 mA max., short-circuit-proof

System Data

• Output current
  • 5 A

Temperatures

• Humidity
  • 5...95 %, no condensation
• Humidity at operating temperature
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
