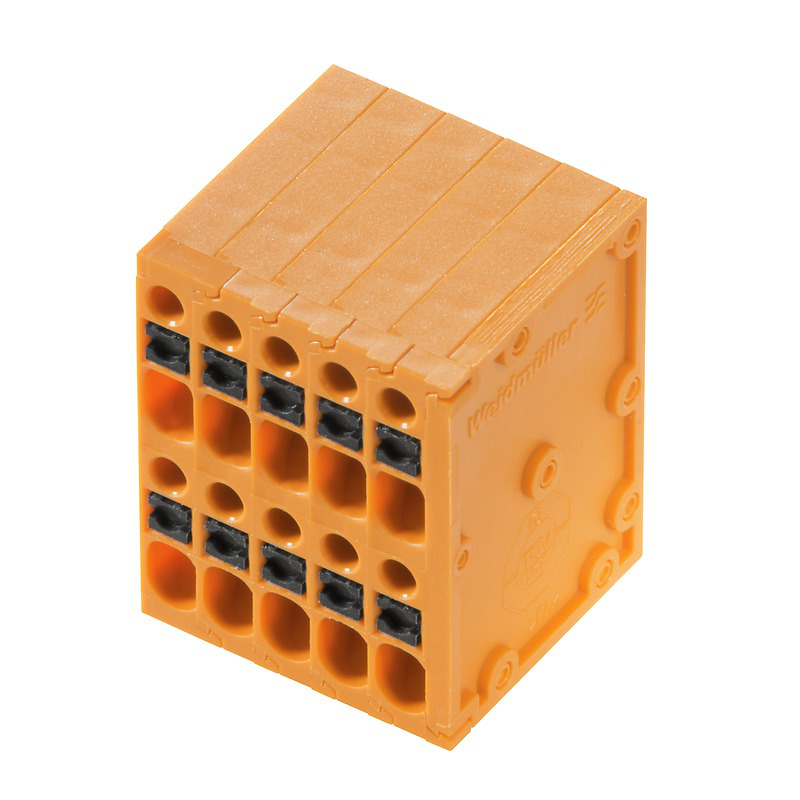

Weidmuller 2001000000

Approvals

• Approvals
  • cURus
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-01
• eClass 9.0
  • 27-44-04-01
• eClass 9.1
  • 27-44-04-01
• ETIM 6.0
  • EC002643
• ETIM 7.0
  • EC002643

Conductors Suitable For Connection

• Clamping range, max.
  • 1.5 mm²
• Clamping range, min.
  • 0.2 mm²
• Flexible, max. H05(07) V-K
  • 1.5 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Max. clamping range
  • 1.5 mm²
• Solid, max. H05(07) V-U
  • 1.5 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 16
• Wire connection cross section AWG, min.
  • AWG 26
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 0.75 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.2 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.2 mm²

Dimensions And Weights

• Depth
  • 18 mm
• Depth (inches)
  • 0.709 inch
• Height
  • 27.7 mm
• Height (inches)
  • 1.091 inch
• Height of lowest version
  • 24.2 mm
• Net weight
  • 14.9 g
• Width
  • 33 mm
• Width (inches)
  • 1.299 inch

Material Data

• Colour
  • orange
• Colour chart (similar)
  • RAL 2000
• Colour of operational elements
  • black
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • Copper alloy
• Insulating material
  • PA 66/6
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 4-7 µm Sn matt
• Material of operational elements
  • PA 66/6
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes.

Packing

• Packaging
  • Box
• VPE height
  • 0 m
• VPE length
  • 0 m
• VPE width
  • 0 m

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 12.5 A
• Rated current (Use group D / CSA)
  • 12.5 A
• Rated voltage (Use group B / CSA)
  • 150 V
• Rated voltage (Use group D / CSA)
  • 150 V
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 26

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 9 A
• Rated current, max. number of poles (Tu=40°C)
  • 8 A
• Rated current, min. number of poles (Tu=20°C)
  • 17.5 A
• Rated current, min. number of poles (Tu=40°C)
  • 17.5 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 400 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 200 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• tested acc. to standard
  • IEC 60947-7-4

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 12.5 A
• Rated current (Use group D / UL 1059)
  • 12.5 A
• Rated voltage (Use group B / UL 1059)
  • 150 V
• Rated voltage (Use group D / UL 1059)
  • 150 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 26

System Parameters

• Conductor outlet direction
  • 90°
• Fitted by customer
  • No
• Insulation strength
  • ≥ 108 Ω
• L1 in inches
  • 0.965 inch
• L1 in mm
  • 24.5 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 16
• Number of rows
  • 2
• Number of solder pins per pole
  • 1
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Product family
  • OMNIMATE Signal - series LS
• Screwdriver blade
  • 0.4 x 2.5
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 1.0 x 0.6 mm
• Solder pin length (l)
  • 3.5 mm
• Solder pin length tolerance
  • -0.1 / 0 mm
• Stripping length
  • 8 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Wire connection method
  • PUSH IN
