Description

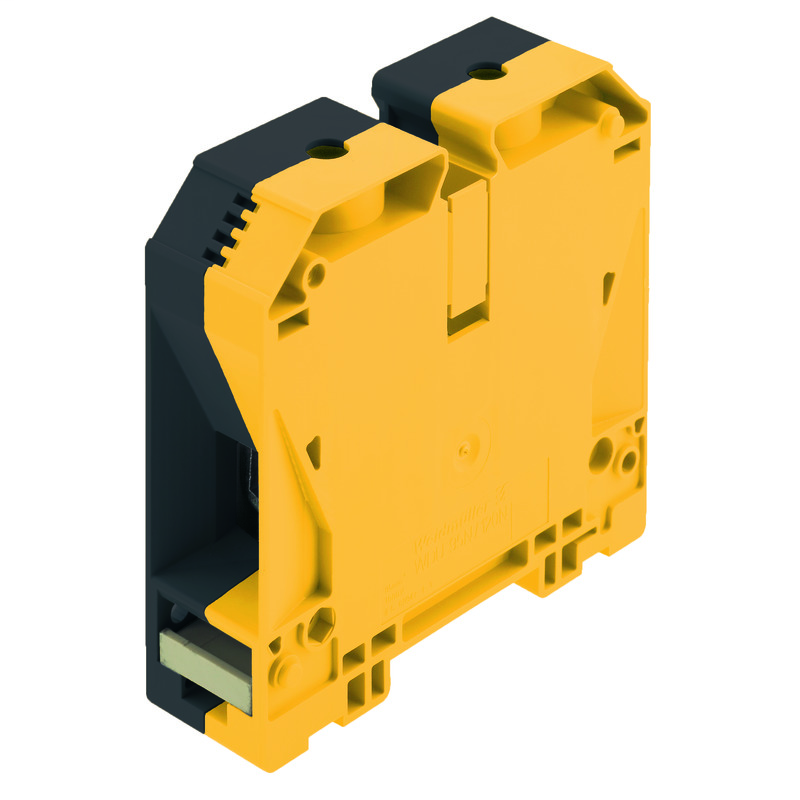

Feed-through terminal, Screw connection, 120 mm², 1000 V, 269 A, yellow, blackWDU 95N/120N GE/SW
Weidmuller 2000110000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, DEMKOATEX, IECEXULD
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Blade size
- S6 (DIN 6911)
- Clamping range, max.
- 150 mm²
- Clamping range, min.
- 16 mm²
- Clamping screw
- M 10
- Connection cross-section, stranded, max.
- 150 mm²
- Connection cross-section, stranded, min.
- 16 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- B13
- Number of connections
- 2
- Stripping length
- 27 mm
- Tightening torque, max.
- 20 Nm
- Tightening torque, min.
- 12 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- kcmil 250
- Wire connection cross section AWG, min.
- AWG 4
- Wire connection cross section, finely stranded, max.
- 120 mm²
- Wire connection cross-section, finely stranded, min.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 95 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 16 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
- Wire connection cross-section, solid core, min.
- 16 mm²
Dimensions And Weights
- Depth
- 90 mm
- Depth (inches)
- 3.543 inch
- Depth including DIN rail
- 91 mm
- Height
- 91 mm
- Height (inches)
- 3.583 inch
- Net weight
- 261.8 g
- Width
- 27 mm
- Width (inches)
- 1.063 inch
Material Data
- Colour
- yellow, black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 290 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 8.61 W
- Rated cross-section
- 120 mm²
- Rated current
- 269 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.12 mΩ
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1338U
- Certificate No. (IECEX)
- IECEXULD14.0005U
- Current (ATEX)
- 221 A
- Current (IECEX)
- 221 A
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Max. voltage (ATEX)
- 880 V
- Max. voltage (IECEX)
- 880 V
- Wire cross section max. (ATEX)
- 120 mm²
- Wire cross section max. (IECEX)
- 120 mm²
Safety Note
- Safety notice
- Safety Information
System Specifications
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials per tier
- 1
- Rail
- TS 35
- Version
- Screw connection, for screwable cross-connection, in closed state
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
