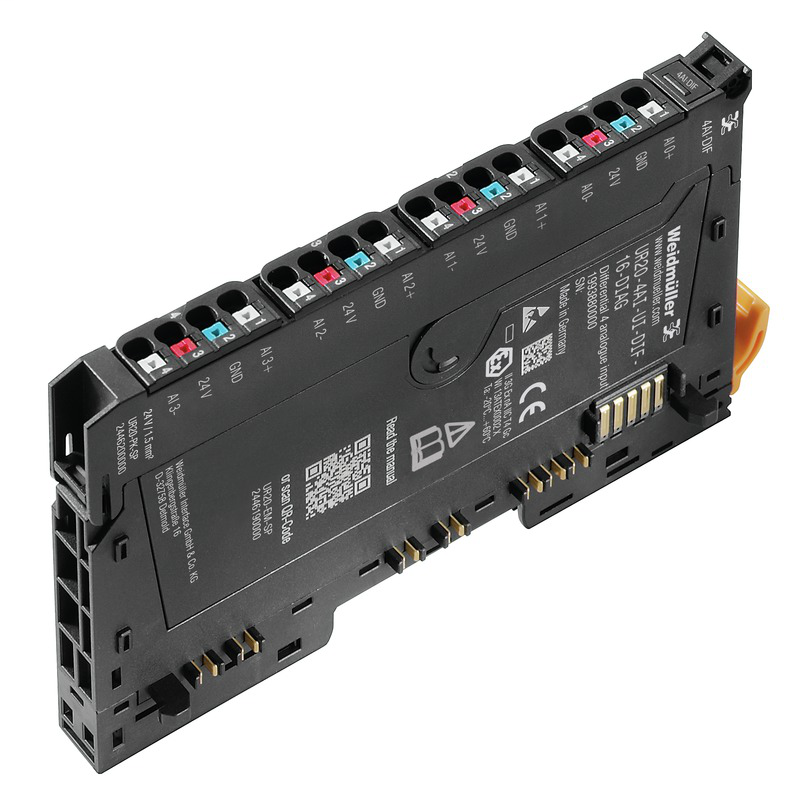

Weidmuller 1993880000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Remote I/O module, 4-channel, Analog signals, Input, Current/Voltage, 16 BitUR20-4AI-UI-DIF-16-DIAG
Weidmuller 1993880000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Analogue Inputs
- Accuracy
- 0.1% FSR
- Conversion time
- 1 ms
- Individual channel diagnosis
- Yes
- Input value
- Voltage U (0…5 V, ±5 V, 0…10 V, ±10 V, 1…5 V, 2…10 V), Current I (0…20 mA, 4…20 mA)
- Internal resistance I
- 18 Ω
- Internal resistance U
- 100 kΩ
- Module diagnosis
- Yes
- Number of analogue inputs
- 4
- Resolution
- 16 Bit
- Reverse polarity protection
- Yes
- Sensor connection
- 2-wire, 3-wire, 4-wire
- Short-circuit-proof
- Yes
Approvals
- Approvals
- ABS, BURVER, DEMKOATEX, DNV GL, IECEXULD, LLOYDSREG, RINA
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-24-26-02
- eClass 9.0
- 27-24-26-02
- eClass 9.1
- 27-24-26-02
- ETIM 6.0
- EC001597
- ETIM 7.0
- EC001597
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire cross-section, solid, min. (AWG)
- AWG 26
Dimensions And Weights
- Depth
- 76 mm
- Depth (inches)
- 2.992 inch
- Height
- 120 mm
- Height (inches)
- 4.724 inch
- Net weight
- 90 g
- Weight
- 91 g
- Width
- 11.5 mm
- Width (inches)
- 0.453 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (storage)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (operation)
- ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Air pressure (transport)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Shock
- 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
- Surge voltage category
- II
- Test voltage
- 500 V
- UL 94 flammability rating
- V-0
- Vibration resistance
- 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Power Supply
- Current consumption from I
- 30 mA
- Reverse polarity protection
- Yes
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
System Data
- Diagnostic data
- 1 Bit
- Field bus protocol
- CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
- Galvanic isolation
- 500 V DC between the current paths
- Interface
- u-remote system bus
- Module type
- Analogue input module
- Transmission speed of system bus, max.
- 48 Mbit
Temperatures
- Operating temperature
- -20 °C ... +60 °C
- Storage temperature
- -40 °C ... +85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
