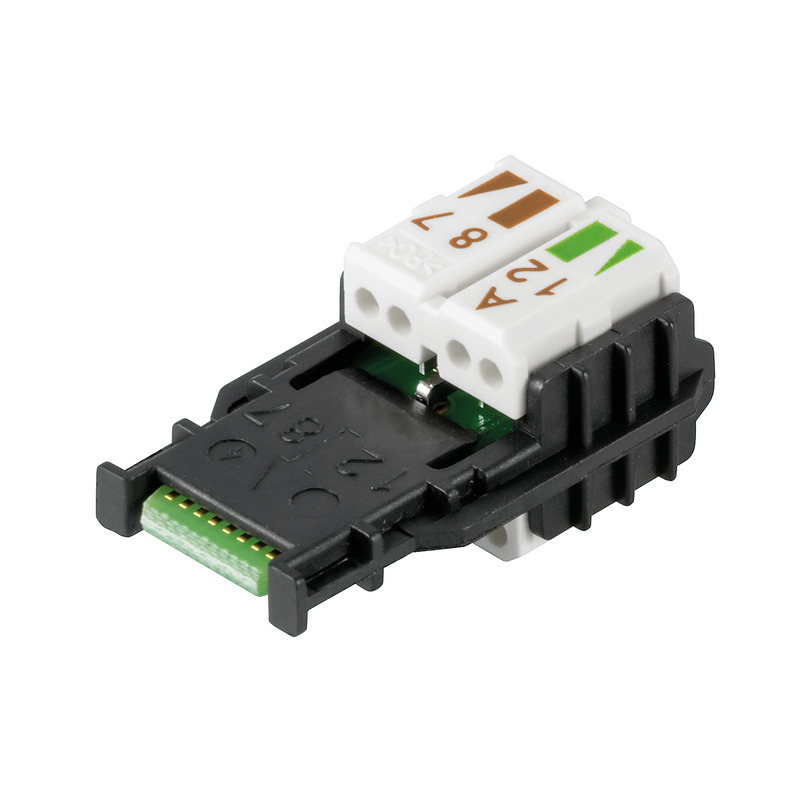

Weidmuller 1992920000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Substitute wire manager, Cat.6A / Class EA (ISO/IEC 11801 2010), EIA/TIA T568 AIE-PI-RJ45-FH-A-1.1
Weidmuller 1992920000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, cURus
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
Dimensions And Weights
- Net weight
- 4.433 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Current-carrying capacity at 50 °C
- 1 A
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Dielectric strength, contact / shield
- ≥ 1500 V DC
- Insulation strength
- > 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Ability to reconnect
- ≤ 4 cycles (with the same cross-section)
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Conductor connection cross-section, extremely flexible
- 0.51, Approval of the cable by Weidmüller necessary
- Conductor connection cross-section, extremely flexible (AWG)
- AWG 26, Approval of the cable by Weidmüller necessary
- Conductor connection cross-section, flexible (AWG)
- AWG 27...AWG 24
- Conductor connection cross-section, solid (AWG)
- AWG 26...AWG 24
- Connection diameter, flexible
- 0.46...0.61 mm
- Connection diameter, solid
- 0.41...0.51 mm
- Contact surface
- Gold over nickel
- Insulation cross-section, max.
- 1.1 mm
- Insulation cross-section, min.
- 0.85 mm
- Protection degree
- IP20
- Speed
- 10 GBit
- Wiring
- EIA/TIA T568 A
Standards
- Certificate no. (cULus)
- E471884
- Certificate No. (cURus)
- E471884
- Connector standard
- IEC 60603-7-51
Temperatures
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
