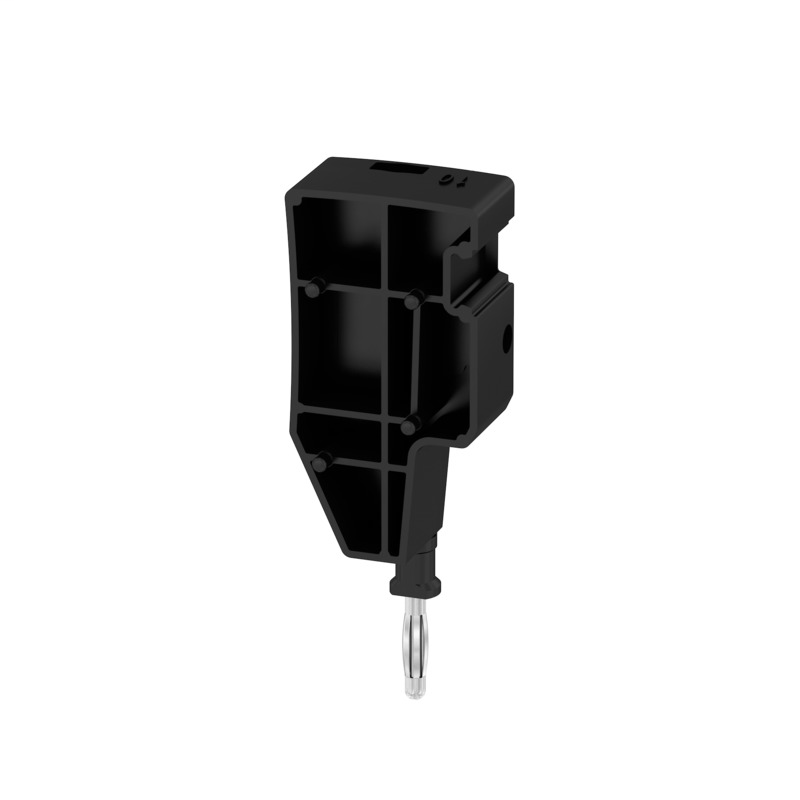

Weidmuller 1991870000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ATPG 10 MI-R
Weidmuller 1991870000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Open sides
- closed
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-48
- eClass 9.0
- 27-14-11-48
- eClass 9.1
- 27-14-11-48
- ETIM 6.0
- EC002555
- ETIM 7.0
- EC002555
Conductors For Clamping (Rated Connection)
- Connection direction
- top
- Number of connections
- 1
- Stripping length
- 6 mm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 1 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 51 mm
- Depth (inches)
- 2.008 inch
- Height
- 18.5 mm
- Height (inches)
- 0.728 inch
- Net weight
- 3.647 g
- Width
- 9.9 mm
- Width (inches)
- 0.39 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Pollution severity
- 2
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Rated cross-section
- 1.5 mm²
- Rated current
- 0.2 A
- Rated impulse withstand voltage
- 2.5 kV
- Rated voltage
- 250 V
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
System Specifications
- End cover plate required
- No
- Number of clamping points per level
- 1
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
