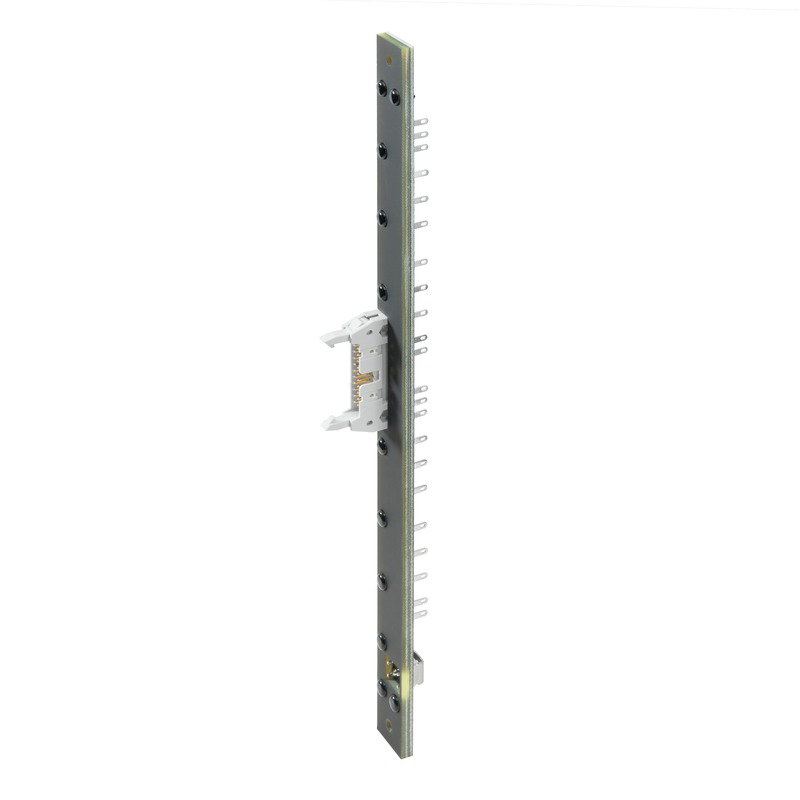

Weidmuller 1986040000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FAD S5135 HE20 16IO R
Weidmuller 1986040000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-33-02-92
- eClass 9.0
- 27-33-02-92
- eClass 9.1
- 27-24-22-92
- ETIM 6.0
- EC002584
- ETIM 7.0
- EC002584
Connection Data
- Connection (field side)
- Plug-in connectors according to IEC 60603-13 / DIN 41651 20p
Dimensions And Weights
- Height
- 36.4 mm
- Height (inches)
- 1.433 inch
- Length
- 283 mm
- Length (inches)
- 11.142 inch
- Net weight
- 610.332 g
- Width
- 20 mm
- Width (inches)
- 0.787 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Insulation test voltage
- 0.35 kVAC
- Pollution severity level
- 2
- Rated insulation voltage
- < 50 V AC
- Surge voltage category
- III
Ratings Data
- Max. current per byte
- 2 A
- Max. current per channel
- 1 A
- Operating voltage
- 30 V AC / 60 V DC
- Total operating current
- 3 A
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
