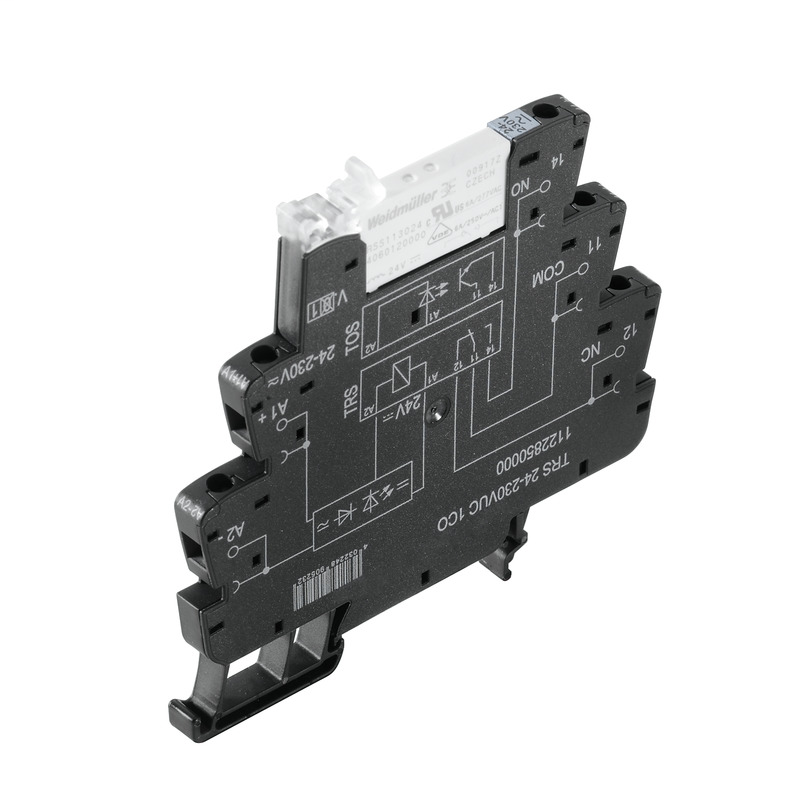

Weidmuller 1984650000

Approvals

• Approvals
  • CE, CULUSEX, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-37-16-01
• eClass 9.0
  • 27-37-16-01
• eClass 9.1
  • 27-37-16-01
• ETIM 6.0
  • EC001437
• ETIM 7.0
  • EC001437

Connection Data

• Blade size
  • size PH0
• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.14 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.25 mm²
• Gauge to IEC 60947-1
  • A1, B1
• Stripping length, rated connection
  • 8 mm
• Tightening torque, max.
  • 0.4 Nm
• Twin wire-end ferrules, max.
  • 1 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.14 mm²
• Wire connection cross section, finely stranded, two clampable wires, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.25 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, finely stranded, max. (AWG)
  • AWG 14
• Wire cross-section, finely stranded, min. (AWG)
  • AWG 26
• Wire cross-section, finely stranded, two clampable wires, max.
  • 1 mm²
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.14 mm²

Contact Data

• Contact type
  • 1 CO contact (AgNi 5µm Au)
• Mechanical service life
  • 5 x 106 switching cycles

Dimensions And Weights

• Depth
  • 87.8 mm
• Depth (inches)
  • 3.457 inch
• Height
  • 89.6 mm
• Height (inches)
  • 3.528 inch
• Net weight
  • 36 g
• Width
  • 6.4 mm
• Width (inches)
  • 0.252 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals / Standards

• Certificate no. (cULusEX)
  • E324123
• Standards
  • EN 50178, EN 55011, EN 61000-6-1, 2, 4

General Data

• Colour
  • black
• Mechanical switch position indicator
  • No
• Rail
  • TS 35
• Test button
  • No
• UL 94 flammability rating
  • V-0
• Version
  • cULus C1D2

Input

• Coil voltage of the replacement relay
  • 24 V DC
• Coil voltage of the replacement relay deviating from the rated control voltage
  • Yes
• Power rating
  • 610 mW @ 24 V DC, 650 mVA @ 24 V AC, 575 mW @ 230 V DC, 1.1 VA @ 230 V AC
• Protective circuit
  • Rectifier
• Pull-in/drop-out current, typ.
  • 28.5 mA / 11 mA AC 23 mA / 6.5 mA DC
• Pull-in/drop-out voltage, typ.
  • 13 V / 7 V AC 13 V / 5 V DC
• Rated control voltage
  • 24...230 V UC ± 10 %
• Rated current AC
  • 27.1 mA AC @ 24 V AC, 4.8 mA AC @ 230 V AC
• Rated current DC
  • 25.6 mA DC @ 24 V DC, 2.5 mA DC @ 230 V DC
• Status indicator
  • Green LED

Insulation Coordination

• Creepage and clearance distance input – output
  • ≥ 5.5 mm
• Dielectric strength, Input/Output
  • 4 kVeff / 1 Min.
• Dielectric strength of open contact
  • 1 kVeff / 1 min
• Dielectric strength to mounting rail
  • 4 kVeff / 1 Min.
• Impulse withstand voltage
  • 6 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output

• AC switching capacity (resistive), max.
  • 1500 VA
• Continuous current
  • 6 A
• DC switching capacity (resistive), max.
  • 144 W @ 24 V
• Inrush current
  • 20 A / 20 ms
• Max. switching frequency at rated load
  • 0.1 Hz
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 250 V
• Min. switching power
  • 1 mA @ 1 V
• Rated switching voltage
  • 250 V AC
• Switch-off delay
  • < 140 ms
• Switch-on delay
  • ≤ 30 ms

Rated Data Ul

• Ambient temperature (operational), max.
  • 40 °C
• Connection cross-section AWG, max.
  • AWG 14
• Connection cross-section AWG, min.
  • AWG 26
• Pollution severity level
  • 2
• Temperature class
  • T5
• Tightening torque, max.
  • 0.4 Nm
• Type of conductor
  • rigid copper conductor, flexible copper conductor

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -40 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
