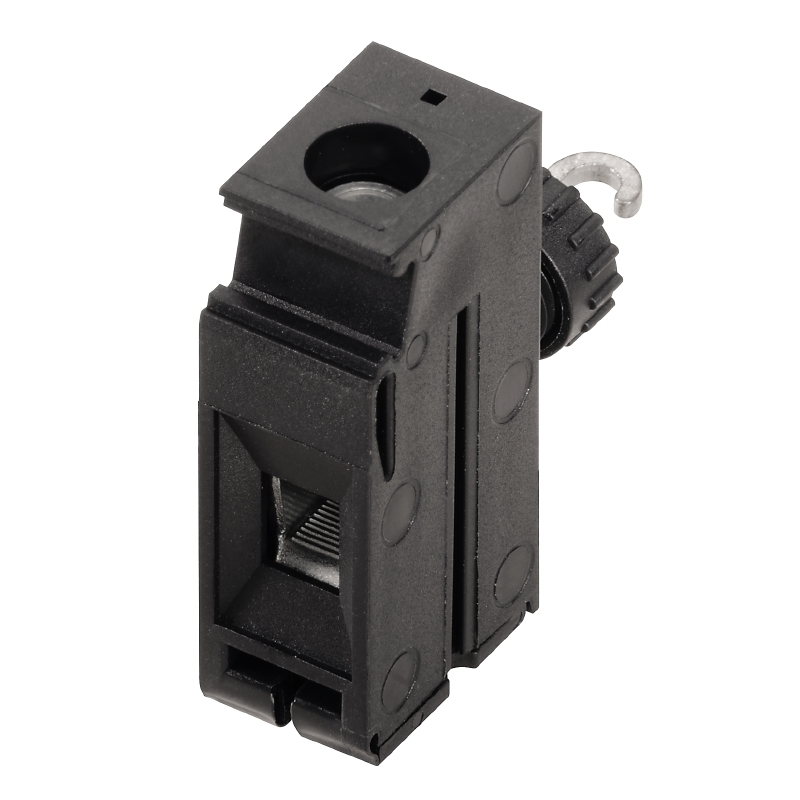

Weidmuller 1965740000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
OMNIMATE Power - series WGK, Feedthrough terminal, Rated cross-section: 6 mm², Wemid (PA), Grey, Direct mounting, Feed-through (bushing)
Weidmuller 1965740000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CURUS
- EAC
- CSA
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- EClass 5.1
- 27-14-11-34
- EClass 6.2
- 27-14-11-34
- EClass 7.1
- 27-14-11-34
- EClass 8.1
- 27-14-11-34
- EClass 9.0
- 27-14-11-34
- EClass 9.1
- 27-14-11-34
- ETIM 3.0
- EC001283
- ETIM 4.0
- EC001283
- ETIM 5.0
- EC001283
- ETIM 6.0
- EC001283
- UNSPSC
- 30-21-18-11
Conductors Suitable For Connection
- Clamping range, rated connection, max.
- 10 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Flexible, max. H05(07) V-K
- 6 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Solid, max. H05(07) V-U
- 10 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, max. H07V-R
- 6 mm²
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section AWG, min.
- AWG 22
- W. wire end ferrule, DIN 46228 pt 1, max.
- 6 mm²
- W. wire end ferrule, DIN 46228 pt 1, min
- 0.5 mm²
Dimensions And Weights
- Height
- 31.5 mm
- Height (inches)
- 1.24 inch
- Height of lowest version
- 31.5 mm
- Length
- 15.5 mm
- Length (inches)
- 0.61 inch
- Net weight
- 7.1 g
- Width
- 10 mm
- Width (inches)
- 0.394 inch
General Ordering Data
- Available until
- 2017-03-30
- GTIN (EAN)
- 4032248671250
- Order No.
- 1965740000
- Packaging
- Box
- Product data
- IEC: 500 V / 41 A / 0.5 - 10 mm²
- UL: 300 V / 50 A / AWG 22 - AWG 10
- Qty.
- 50 pc(s).
- Type
- VWGK 6
Material Data
- Colour
- Grey
- Colour chart (similar)
- RAL 7035
- Contact material
- E-Cu
- Contact surface
- tinned
- Insulating material
- Wemid (PA)
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 120 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-0
Rated Data Acc. To CSA
- Certificate No. (CSA)
- 200039-1830694
- Institute (CSA)
- icon
- Rated current (use group B)
- 50 A
- Rated current (use group C)
- 50 A
- Rated current (use group D)
- 10 A
- Rated voltage (Use group B)
- 300 V
- Rated voltage (Use group C)
- 300 V
- Rated voltage (use group D)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
- Wire cross-section, AWG, max.
- AWG 10
- Wire cross-section, AWG, min.
- AWG 22
Rated Data Acc. To IEC
- Rated current, max. no. of poles (Ta = 20°C)
- 41 A
- Rated current, min. no. of poles (Ta = 20°C)
- 41 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
- Rated voltage for surge voltage class / pollution degree III/3
- 500 V
- Tested acc. to standard
- IEC 60664-1, IEC 61984
Rated Data Acc. To UL 1059
- Certificate No. (cURus)
- E60693
- Institute (cURus)
- icon
- Rated current (use group B)
- 50 A
- Rated current (use group C)
- 50 A
- Rated current (use group D)
- 10 A
- Rated voltage (use group B)
- 300 V
- Rated voltage (use group C)
- 300 V
- Rated voltage (use group D)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
- Wire cross-section, AWG, max.
- AWG 10
- Wire cross-section, AWG, min.
- AWG 22
System Parameters
- Clamping screw
- M 3.5
- Conductor outlet direction
- 180°
- Fitted by customer
- No
- Product family
- OMNIMATE Power - series WGK
- Screwdriver blade
- 0.8 x 4.0
- Stripping length
- 13 mm
- Tightening torque, max.
- 1.8 Nm
- Tightening torque, min.
- 0.8 Nm
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Wire connection method
- Screw / solder connection
